Hob Silver PV275S | Smeg.com

Hob

Cucina

PV275S

Product Family
Hob
Aesthetics
Cucina
Type
Gas
Dimensions
70/75 cm
Built-in
Ultra-low profile or Fully Flushed
  • Highlights
  • Features
  • Accessories
  • Download

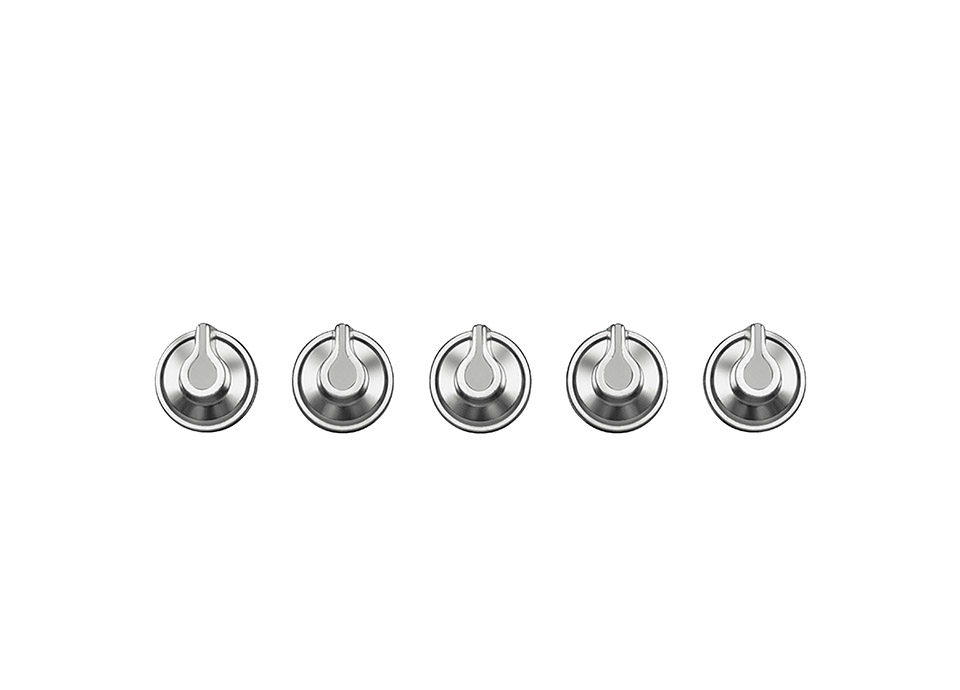

INTERCHANGABLE AESTHETICS

A set of 5 'Linea' style controls are available to change the aesthetic of your hob.

Code: 5MP1GOG

ULTRA RAPID BURNERS

These powerful burners can offer up to 5.00kW power on some models and offer 3 different configurations: a triple flame burner or a dual flame burner with a single control, or a dual flame 3-way burner. Composed of an auxiliary and a rapid burner, its 2 controls allow both parts of the burner to work together or independently.

SAFETY VALVES

All Smeg gas hobs include safety valves as standard, the valves on the burner cut off the gas flow if the flame is accidentally exitinguished. In this event, the gas feeder valve shuts off immediately, regardless of the position of the control.

ADAPTABLE FOR LPG

All gas hobs can be converted to LPG using the kit supplied

Type

Product Family: Hob
Dimensions: 70/75 cm
Type: Gas
Built-in: Ultra-low profile or Fully Flushed
Power supply: Gas
EAN code: 8017709288679

Aesthetics

???CONTROL_SETTING_Knobs_72dpi??? Reinforced base: A reinforced base, developed exclusively by Smeg, consists of a steel layer fixed to the underside of the glass surface of all gas on glass hobs. Heavy duty cast iron pan stands: for maximum stability and strength.
Colour: Silver
Finishing: Glass
Aesthetics: Cucina
Material: Glass
Glass Type: Standard (clear)
Controls colour: Steel effect
Type of control setting: Control knobs
Control knobs position: Front
No. of controls: 5
Glass edge: Straight edge
Glass on Steel: Yes
Pan stands: Cast iron
Burners: Standard
Burners Material: Alluminium
Serigraphy colour: White

Programme / Functions

Total no. of cook zones: 5
No. of gas cook zones: 5

Options

Standard cut out: 482-486x560-564 mm

Cooking zones

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Central
4th zone position: Rear right
5th zone position: Front right
1st zone type: Gas - AUX
2nd zone type: Gas - Semi Rapid
3rd zone type: Gas - UR
4th zone tipe: Gas - Rapid
5th zone type: Gas - Semi Rapid
1st zone power: 1.00 kW
2nd zone power: 1.70 kW
3rd zone power: 4.00 kW
4th zone power: 2.60 kW
5th zone power: 1.70 kW

Technical Features

Gas Type: G20/G25 natural gas
Gas safety valves: Yes
Automatic Ignition: Yes

Electrical Connection

Gas connection rating (W): 11000 W
Nominal power (W): 1 W
Voltage (V): 220-240 V
Frequency (Hz): 50/60 Hz
Type of electric cable: Single phase
Power supply cable length: 120 cm

Logistic Information

Dimensions of the product (mm): 48x720x510
Depth (mm): 510 mm
Width (mm): 720 mm
Product Height (mm): 48 mm

Accessories Included

Other gas nozzles included: G30 GPL Liquid gas
