Dishwashers Universal DI323BL

Name: Dishwashers Universal DI323BL
Brand: Smeg
SKU: DI323BL

Product Family

Dishwashers

Aesthetics

Universal

Installation

Fully-integrated built-in

Width

60 cm

Number of place settings

Colour

Silver

Energy Efficiency Class (Washing cycle)

Find Resellers

Compare

Highlights
Features
Accessories
Download

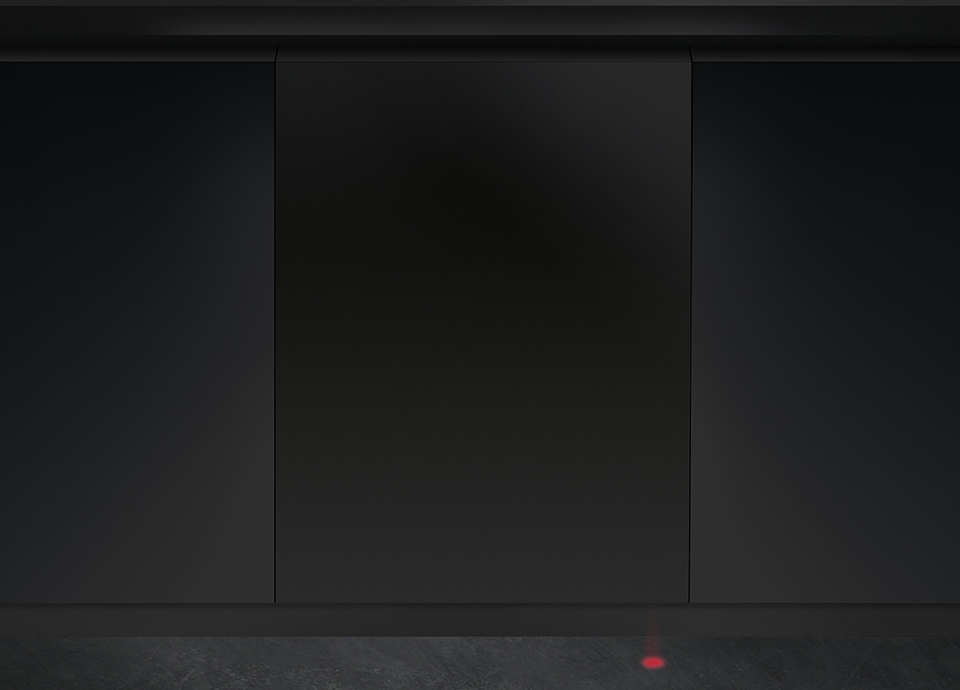

Active Light

Selected Smeg dishwashers fitted with ActiveLight project a red light onto the floor when the appliance is in operation. At the end of cycle, the light automatically turns off alerting you to open the door.

Scroll

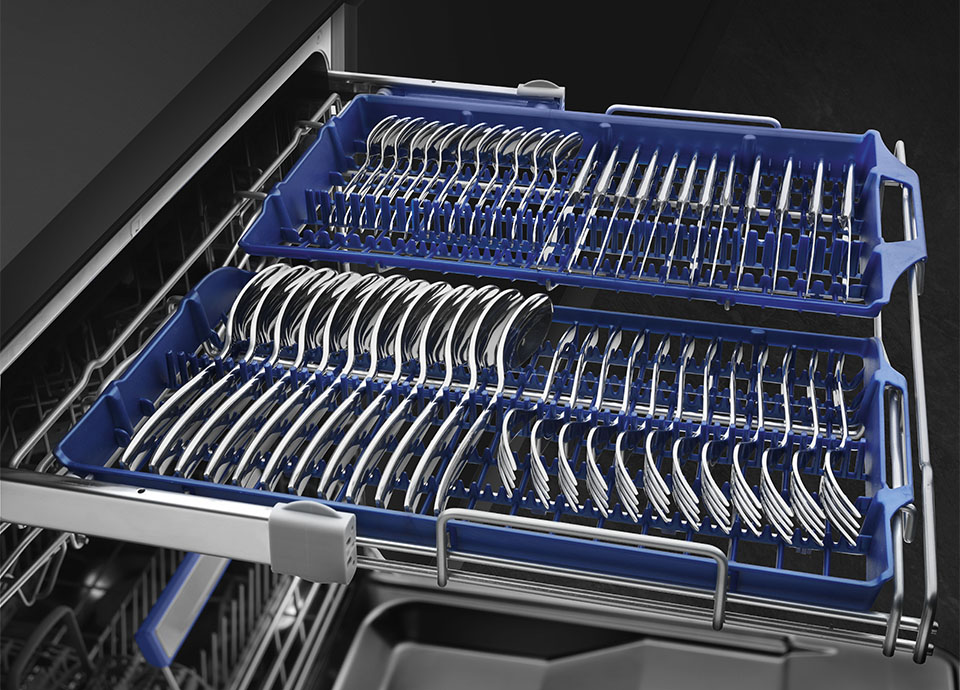

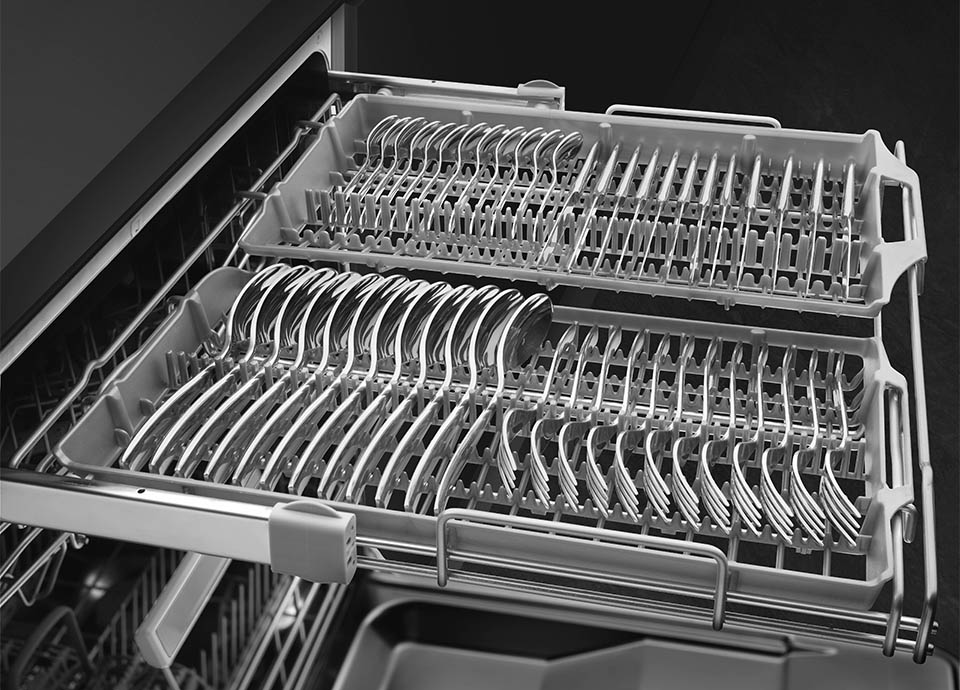

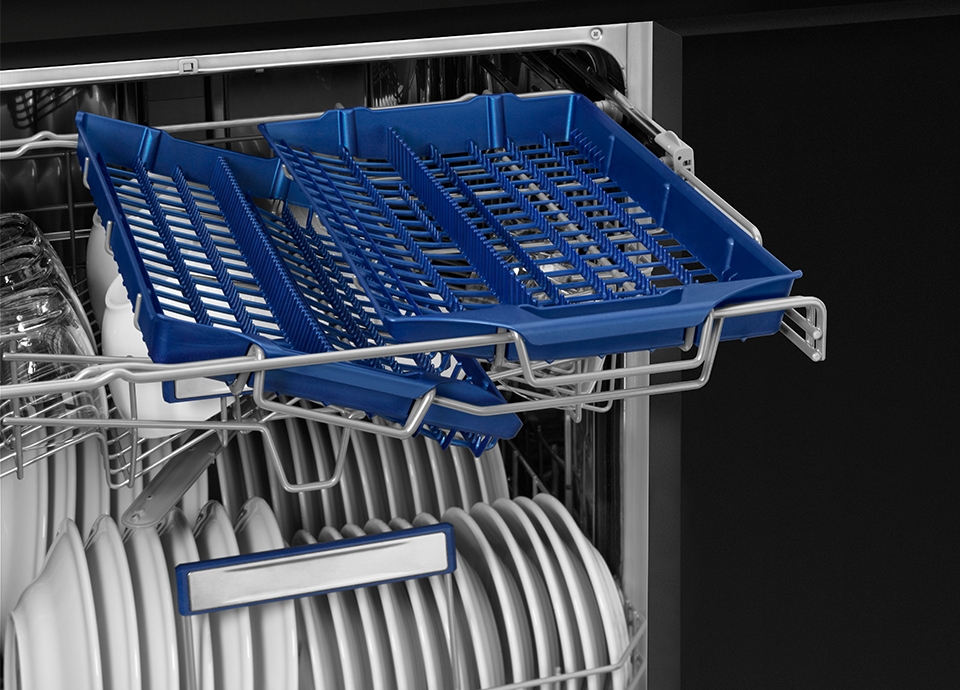

FLEXIDUO cutlery basket

The third cutlery basket; the Smeg Flexi Duo, consists of 2 separate and movable sections which can be adjusted individually or even removed entirely depending on your loading needs. An intelligent solution that makes room for tall glasses below or deep utensils above.

Depending on the model, these can be blue or grey in colour.

INVERTER MOTOR

Some dishwasher models are fitted with a latest generation Inverter motor which guarantees a longer service life, efficiency, reduced energy consumption and noise level.

Dishwashers fitted with the Inverter Motor have a Silence program which reduces the initial noise level of the dishwasher by 2 dB (A).
This is ideal for open plan kitchens and night use, especially during off-peak hours for total discretion.

Planetarium wash system

The unique, patented planetarium wash system from Smeg provides complete coverage of the dishwasher, thanks to the eccentric rotation of the spray arm on its base.

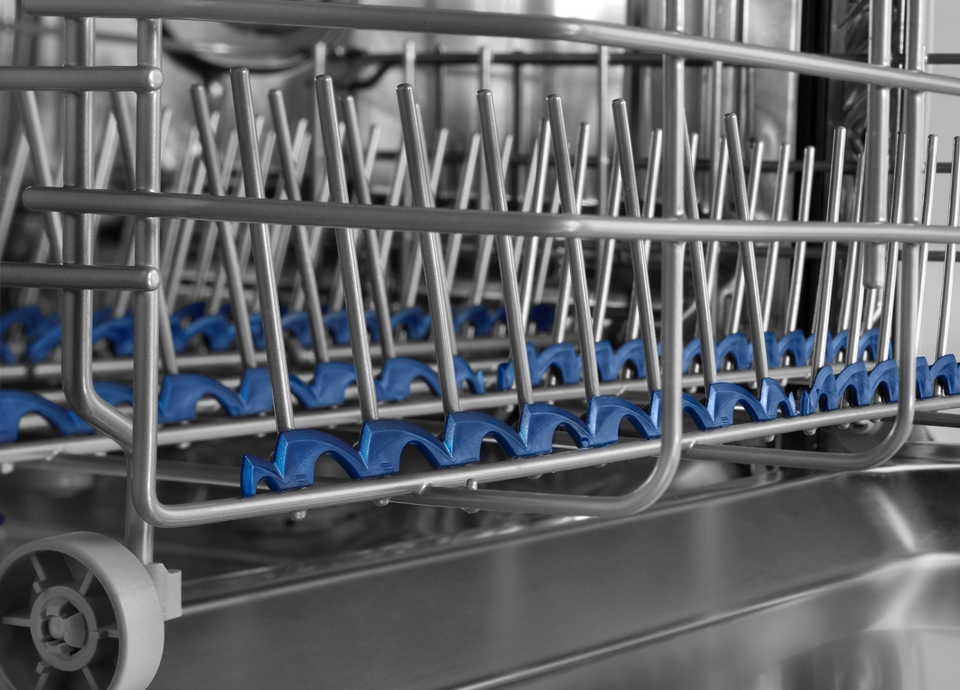

Anti Drip System

Blue anti-drip inserts are installed in the lower basket of Smeg's new generation dishwashers. This addition improves drying results and cuts down drips between dish and basket.

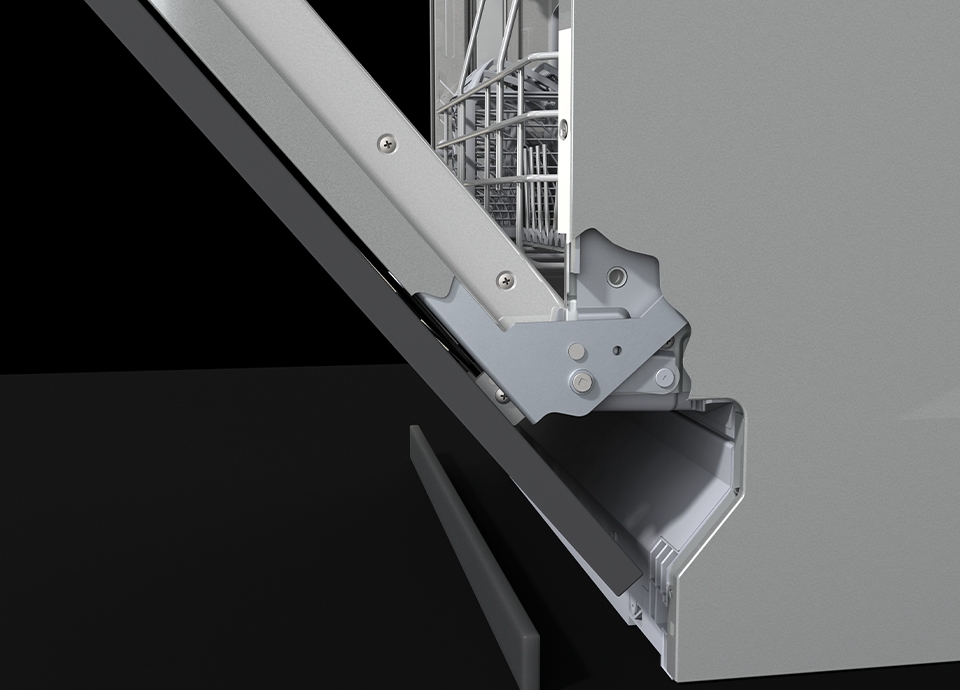

SLIDING DOOR SYSTEM

The Flexifit hinge system allows smooth sliding of the dishwasher door, in order to offer freedom in the choice of the dimensions of the panel and the plinth, the height of which can vary from 5 to 21.5 cm. The dishwasher harmonises with the cabinet in which it is inserted, allowing the door and the plinth to appear almost flush, with a minimum distance between the two of only 3 mm.

AQUASTOP

Most Smeg dishwashers have Total acquastop, an electronic device fitted to the water intake hose and the base of the machine, which monitors water levels in the machine, detects leaks in the hose and switches off the water supply immediately directly from the source when necessary, preventing water spillages onto the floor.

DELAY TIMER

A delay timer can be set to run the programme at a convenient time or to take advantage of off-peak energy periods.

DRY ASSIST

At the end of the drying cycle a special device automatically opens the door a few centimeters to ensure perfect drying. This can save up to 20% of energy compared to Class A, by automatically opening the door there is less need for the heater element to continue to get the desired drying result.

SILENT PROGRAM

The hydraulic system, the shape of the bottom of the chamber and the use of increasingly high-performance motors means that the noise of the washing cycle is reduced by up to -2 dB when this program is selected.

EXPRESS 27' PROGRAM

Designed especially for lightly soiled dishes to be washed immediately after use, the quick program washes in just 27 minutes.

SELF CLEAN PROGRAM

An automatic program designed for cleaning and maintenance of the machine.

Aesthetics

Aesthetics: Universal

Colour: Silver

Finishing: Silver

Front panel colour: Silver (oropal grey)

Door type: Silver (oropal)

LED/display colour: White and blue

Button colour: Silver (oropal grey)

Type

Product Family: Dishwashers

Commercial height: 82 cm

Number of place settings: 13

Installation: Fully-integrated built-in

Width: 60 cm

EAN code: 8017709307844

Kitchen panel: Not supplied

Technical Features

Auto switch-off: Yes

Controls: Electronic

Display: Delayed start, Programme time indicator

Door opening system: Yes

Display type: 3 digit

On/off indicator: Yes

Salt light indicator: Light

Rinse aid indicator: Light

End of cycle indicator: ActiveLight

Washing system: Planetarium

Drying system: Natural condenser drying, with Dry Assist + automatic door opening system at the end of the cycle

Motor: Inverter 2.0

Third spray arm: Single

Water softener: With electronic setting

Turbidity sensor Aquatest: Yes

Flood protection system: Total Acquastop

Water supply: Single; cold/hot water max. 60°C - energysave with hot water up to 35%

Max water hardness: 100°fH;58°dH

Steam protection: In plastic

Tank material: Stainless steel

Filter: Stainless steel

Concealed heating element: Yes

Min. and max plinth height: 50 - 215 mm

Min. and max. frontal panel weight: 2 - 11 kg

Hinges: Self balancing, Sliding, FLEXIFIT

Adjustable feet: 7cm, from 820 to 890 mm

Back feet adjustable from front: Yes

Programmes

No. of programmes: 10+1

Soak: Yes

Express 27': Yes

Full express - 60 minutes: Yes

ECO: Yes

Quiet (-2 dB): Yes

Auto sensor 45-65: Yes

Mix: Yes

Intense: Yes

Hygiene 99,9%: Yes

Self clean: Yes

Crystal: Yes

Washing temperatures: 38, 45, 50, 55, 65, 70, 75 °C

Options

Dry Assist+ option: Yes

Delay timer option: Up to 24 hours, with automatic soak

1/2 load FlexiZone option (varied distribution): Yes

Special programs option: Yes

Baskets

N° baskets: 3, FlexiDuo

Basket colour: Grey

Basket components colour: Grey

Handle: In plastic on upper and lower basket

Upper Basket: With 3 foldable racks

Glass holder: Yes

Height adjustment of the upper basket: On three levels

Sliding Guides Extra Glide: Yes

Lower Basket: With 4 foldable racks

Largest loadable dish in upper basket: 19,0 cm

Lower basket with anti-drip inserts: Yes

Largest loadable dish in lower basket: 30,0 cm

Cutlery basket: Yes

Colour Inner Components: Blue

Performance / Energy Label

Energy Efficiency Class (Washing cycle): B

Energy consumption [per 100 cycles, based on the eco programme]: 63 kWh

Rated capacity (ps): 13

Water consumption [per cycle]: 9.0 litres

Programme duration: 4:25 h:min

Airborne acoustical noise emissions (spinning phase): 42 dB(A) re 1 pW

Airborne acoustical noise emission class: B

Energy efficiency Index (EEI) (Washing cycle): 37.9

Electrical Connection

Connected power: 1800 W

Current: 13 A

Voltage: 220-240 V

Type of connection: Single-phase

Frequency (Hz): 50 Hz

Plug: (G) UK e Singapore

Power supply cable length: 140 cm

Features attributes

Noise level: 40 - 44 dB(A)

Logistic Information

Dimensions of the product HxWxD (mm): 818x598x545

Net weight (kg): 44.000 kg

Gross weight (kg): 46.000 kg

Country of origin: IT

Packed width: 650 mm

Packaged depth: 670 mm

Height (mm) packed: 890 mm

Dimensions of the packed product (mm): 890x650x670

Maximum stackability: 5

Type of packaging: Shrinkwrap

Packaging composition - paper & cardboard (kg): 0.000 kg

Packaging composition - polystyrene (kg): 0.495 kg

Packaging composition - wood (kg): 0.205 kg

Packaging composition - plastic (kg): 0.485 kg

Other accessories: Salt funel

Optional

Accessories, Type: Door kit, Dishwashers

Accessories, Type: Extension kit, Dishwashers

Accessories, Type: Door kit, Dishwashers

Technical drawing

Download (png)

Instruction manual

Programs table (EN) (pdf)

User manual (EN) (pdf)

Installation template (ALL) (pdf)

Other Instructions (ALL) (pdf)

Energy Label

Download (EU)

Download (UK)

Product information sheet

Download (EU)

Download (UK)

Product sheet

Download

Brochure

Download

3D file

Download

For availability in specific countries please contact your local agent
