24" Full Gas Range - Stainless steel

SPR Aesthetic

Features Dimensions

Available colours

Find a dealer near you

Compare

Product code: SPR24UGGX

Compact- design range with gas oven and gas cooktop: efficient and responsive, the visible heat source allows total control and choice of the right intensity.

New cooling system with tangential fan and airflow from the door to the splashback
Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
The door is equipped with a specific system for silent closing
More space thanks to the lower compartment, ideal for storing accessories or cooking utensils

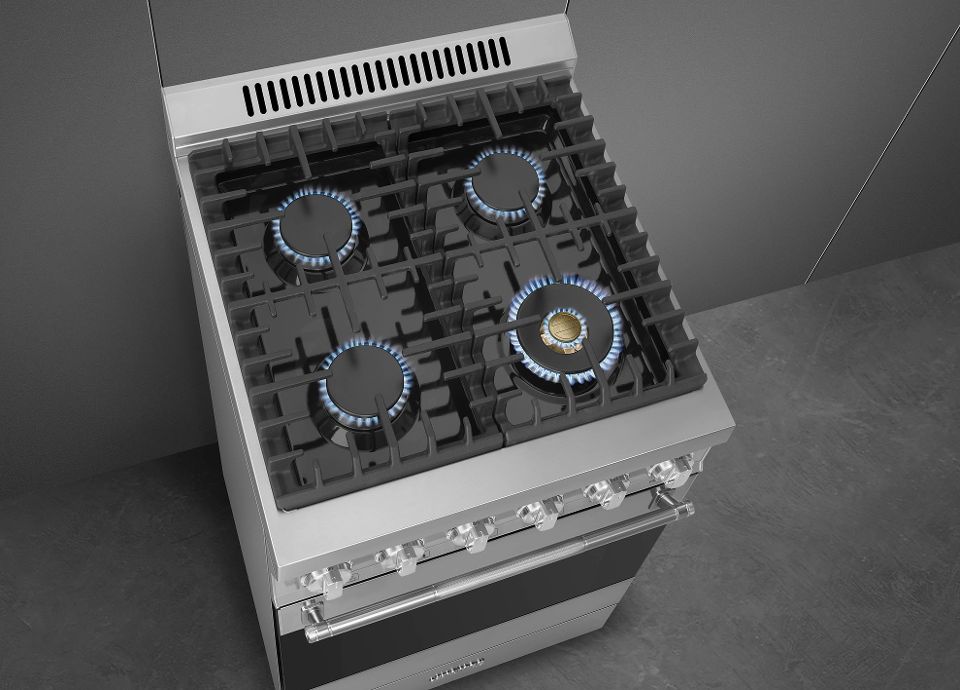

ENAMELED TOP

The cooktop has a renewed look thanks to a black, enameled surface equipped with three standard burners and an additional powerful brass burner with an engraved SMEG logo.

Scroll

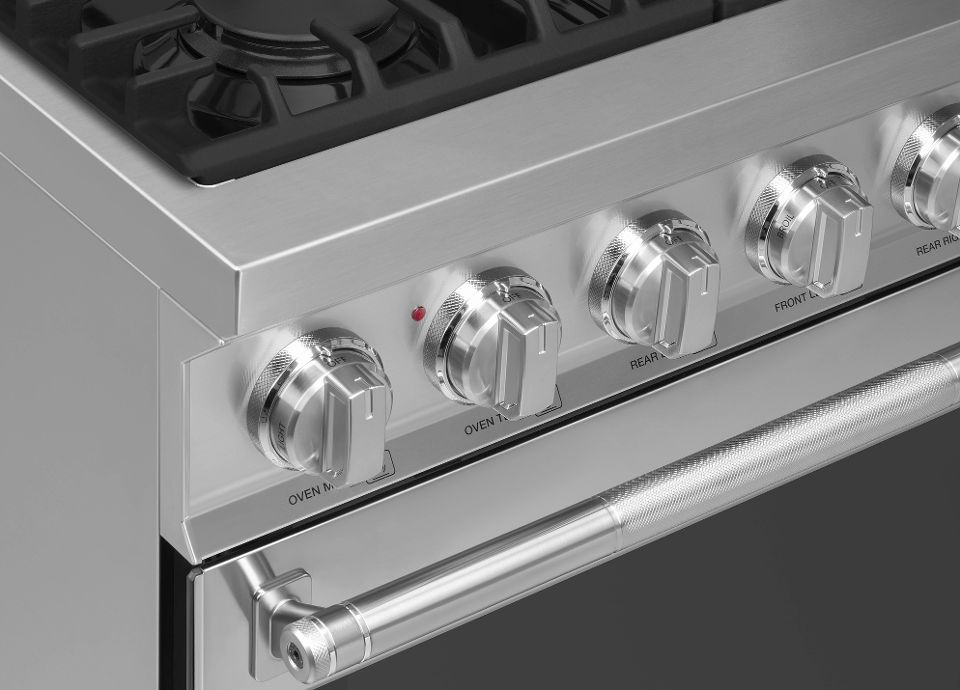

REVAMPED DESIGN

SMEG SPR ranges interpret cooking trends with a professional look and elegant details such as sturdy knobs and a knurled handle. They perfectly adapt to all spaces and ensure a perfect slot-in installation.

CAST IRON GRATES

The Smeg professional range cooktop has a renewed look thanks to a black enameled surface and resistant continuous cast iron grates with a new US design.

REMOVABLE GLASS

To facilitate cleaning and guarantee the best ease-of-use of the oven beneath the cooktop, the internal glass of the door is easily removable.

SOFT CLOSE

The soft close system guarantees a gentle closing of the door, without the need for it to be accompanied manually.

Aesthetic

Material: Stainless steel

Color: Stainless steel

Finishing: Satin

Series: Professional

Cooktop color: Black enamel

Grates: Cast Iron

Control setting type: Control knobs

Control knobs: Pro-style control knobs

No. of controls: 6

Handle: Robust knurled handle

Handle color: Brushed stainless steel

Storage compartment: Storage drawer

General information

Product family: Range

Range size: 24"

Range type: Full Gas

Installation positioning of the appliance: Free-standing, Class 1

Cooktop: Gas

N. of ovens: 1

Main oven: Gas with grill

EAN code: 8017709301446

Programs / Functions

Other functions

Defrost by time

Traditional cooking functions

Large grill
Bottom
Convection bottom

Main oven options

Minimum Temperature: 250 °F

Maximum temperature: 500 °F

Cooktop technical features

Cooking zones: 4

Zone 1 - Position: Front-left

Zone 2 - Position: Rear-left

Zone 3 - Position: Rear-right

Zone 4 - Position: Front-right

Burner caps: Enameled matte black

Automatic gas ignition: Yes

Gas safety valves: Yes

Main Oven Technical Features

Volume: 2.79 cu. ft.

Cavity material: EverClean enamel

No. of shelves: 5

No. of lights: 1

Light type: Halogen

Light Power: 40 W

Fan number: 1

Removable door: Yes

Removable inner door: Yes

Total no. of door glasses: 3

Cooling system: Tangential

Grill type: Gas

Soft Close system: Yes

Electrical Connection

Current: 1 A

Circuit breaker: 15 A

Voltage: 120 V

Frequency: 60 Hz

Plug: (B) NEMA 5-15P

Power cord length: 59 1/16 "

Type of electric cable installed: Yes, Single phase

Gas Connection

Gas Type: G20 Natural gas

Logistic Information

Width: 23 15/16 "

Height: 35 9/16 "

Depth: 26 "

Gross weight: 177 lbs

Net weight: 156 lbs

Packaged width: 26 9/16 "

Packaged depth: 27 3/4 "

Packaged height: 34 1/16 "

Packaging: Shrink-wrapped

Packaging composition - Paper: 12 lbs

Packaging composition - Polystyrene: 2 lbs

Packaging composition - Wood: 5 lbs

Packaging composition - Plastics: 1 lbs

Included accessories

Oven wire rack: 2

Accessories Included

Other gas nozzles included: G30 LPG liquid gas

Optional

Accessories, Type: Toe kick, Ranges

Accessories, Type: Telescopic Guides, Ovens, Ranges

Accessories, Type: Reduction Grid, Ranges, Cooktops

Accessories, Type: Reduction Grid, Ranges, Cooktops

Accessories, Type: Pizza shovel, Ovens, Ranges

Color: Stainless steel
