New

Refrigerator

Universal

Name: Refrigerator Universal
Brand: Smeg
SKU: CB3620UWI

Energy consumption Dimensions

Find a dealer near you

Compare

Product code: CB3620UWI

Built-in refrigerator with freezer compartment in the lower compartment. The combined configuration offers practicality and efficiency in a compact space to meet all daily needs

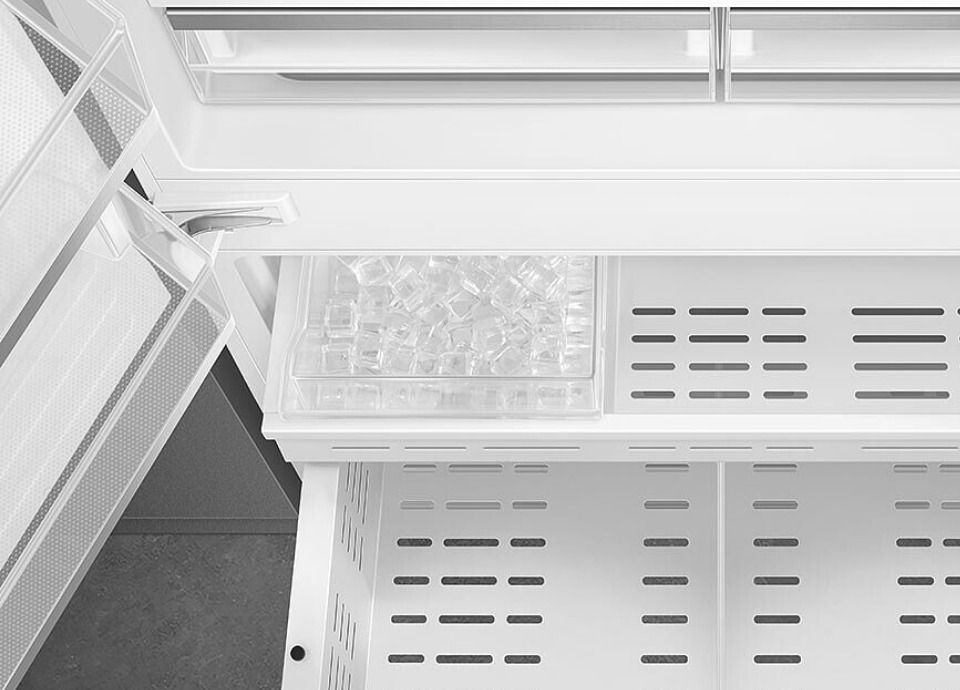

Constant ice availability thanks to the automatic ice maker, directly connected to the water supply for effortless and uninterrupted production
The water dispenser always offers fresh water in a practical way and without the need for plastic bottles
Specially designed compartment, perfectly crafted to keep fruit and vegetable fresh
The No Frost system prevents the formation of ice and contributes to better preservation of food in the refrigerator
Inverter compressor reduces noise and vibration levels for a quiet and comfortable kitchen environment - Inverter compressor
The low temperature of this compartment is specially suitable to store frozen food that needs to thaw slowly, such as meat or fish, keeping them in optimal condition

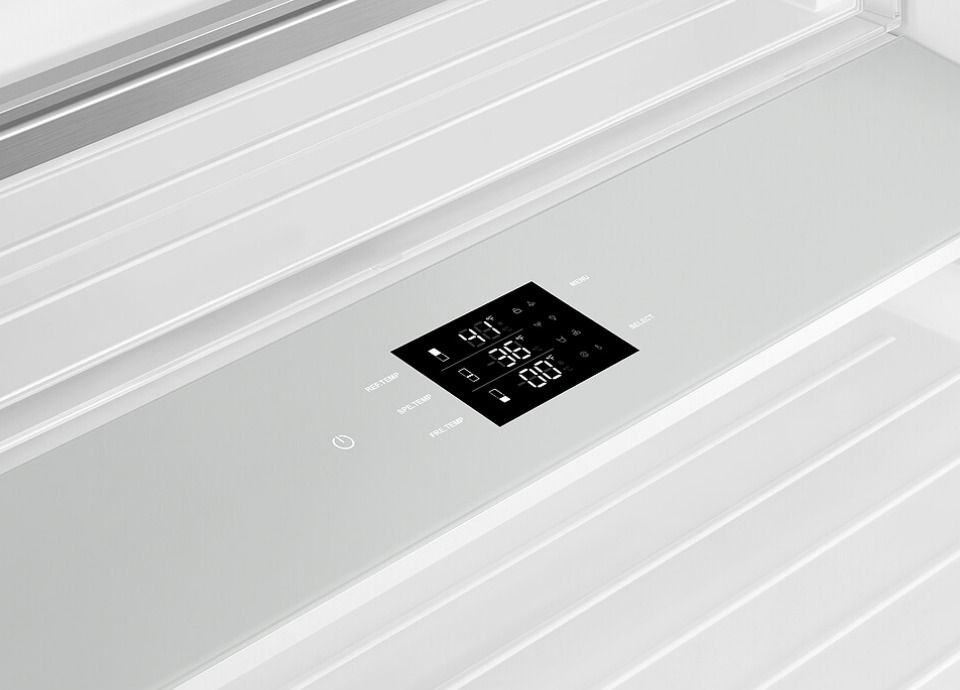

Internal display for targeted temperature control and a clean, minimalist design

Features
Download
General Disclosures

Aesthetic

Aesthetics: Universal

Material: Plastic

Side material: Plastic

Display: LED

Display position: Internal (belt-line)

Water filter: Yes

Dispenser: Ice and water

Door shelf profile color: Silver

Drawers profile color: Silver

Glass shelf profile color: Silver

General information

Product family: Refrigerator

Installation: Built-in

Category: Bottom mount

Cooling type: Total no-frost - Dual-flow cooling system

No-frost system: Total

Defrost: Automatic

Hinge position: Right

Hinge: Door-to-door

Reversible door: Yes

Slot-in: Yes

Kitchen panel: Not supplied

Reference width: Higher than 80 cm

Reference height: Higher than 200 cm

Built-in niche: >200

EAN code: 8017709350703

UPC Code: 812895026450

Refrigerator compartment features

No. of adjustable shelves: 2

Number of fruit and vegetables drawers: 1

Crisper drawer type: Sliding crisper

Type of adjustable shelves: Glass

Crisper cover: Yes

Type of crisper cover: Glass

Low temperature compartment: Yes

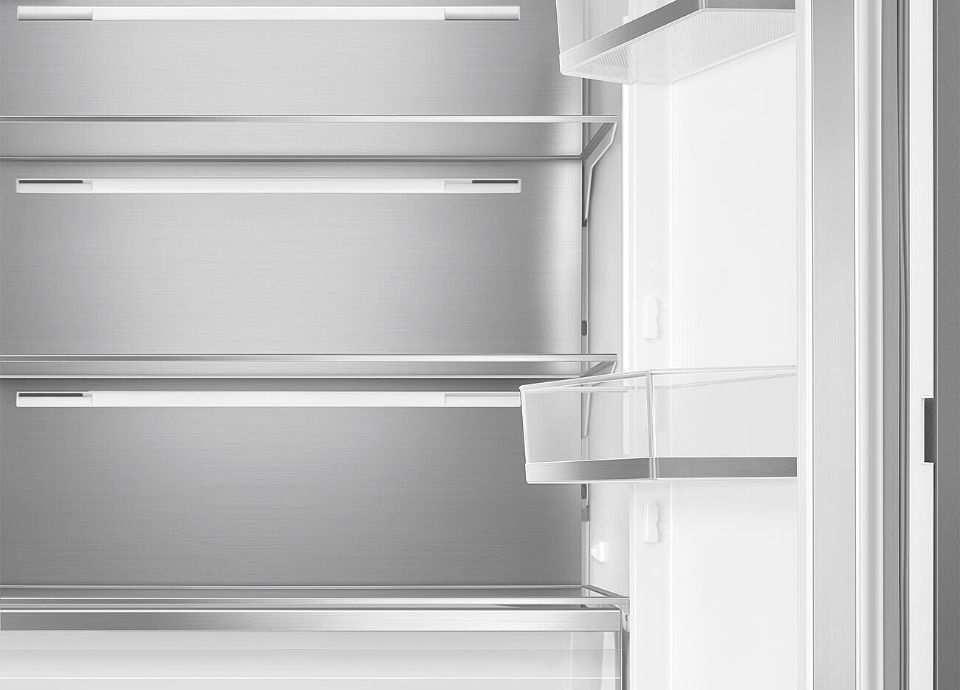

Refrigerator lighting: Yes

Refrigerator lighting: LED

Refrigerator Inner Door

Number of adjustable door shelves: 2

Other Refrigerator features

MultiFlow: Yes

Freezer features

Number of drawers: 2

Freezer lighting: Yes

Freezer lighting: LED

Other Freezer features

Accessories: 1 x ice box

Ice maker: Automatic

Ice-tray shelf: Yes

Other technical features

ADA Compliant: Yes

Fast-freezing button: Yes

Water network connection: Yes

Power-on light: Yes

Temperature setting type: Electronic

No. of compressors: 1

Compressor type: Inverter

Door panel weight allowance: 55 lbs

Maximum freezer door panel weight allowance: 22 lbs

Display functions: Holiday, Fast-freezing, ECO, Child lock, Sabbath

Performance / Energy Label

Annual energy consumption: 500 kWh/year

Total volume: 19.78 cu. ft.

Freezer volume: 5.58 cu. ft.

Refrigerator compartment: 14.20 cu. ft.

Temperature rising time: 11 h

Climatic class: ST

Noise level: 43 dB(A) re 1 pW

Electrical Connection

Current: 3 A

Voltage (V): 110-120 V

Frequency (Hz): 60 Hz

Plug: (B) USA 120V

Power cord length: 90 9/16 "

Logistic Information

Dimensions: 2123x908x592 mm

Width: 35 3/4 "

Built-in niche width: 36 "

Height: 83 9/16 "

Built-in niche height: 84 "

Depth without handle: 23 5/16 "

Built-in niche depth: 25 "

Gross weight: 401 lbs

Packaged dimensions: 2300x970x670 mm

Packaged width: 38 3/16 "

Packaged depth: 26 3/8 "

Packaged height: 90 9/16 "

Net weight: 357 lbs

Packaging: Cardboard box

Packaging composition - Paper: 13 lbs

Packaging composition - Polystyrene: 6 lbs

Packaging composition - Wood: 23 lbs

Packaging composition - Plastics: 1 lbs

Technical drawing

Download (mm) (png)

Download (Inch) (png)

Instruction manual

User manual (EN) (pdf)

Installation Manual (ALL) (pdf)

Energy Label

Download

Product sheet

Download

Prop 65	CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. For more details see our FAQ section
AB-1200	Regulatory Disclosures: Download
