Range SPR30UGGX

Product family
Range
Range size
30"
Series
Professional
Color
Stainless steel
Cooktop type
Gas
Main oven
Gas with grill
Find a dealer near you
  • Product Highlights
  • Features
  • Accessories
  • Download

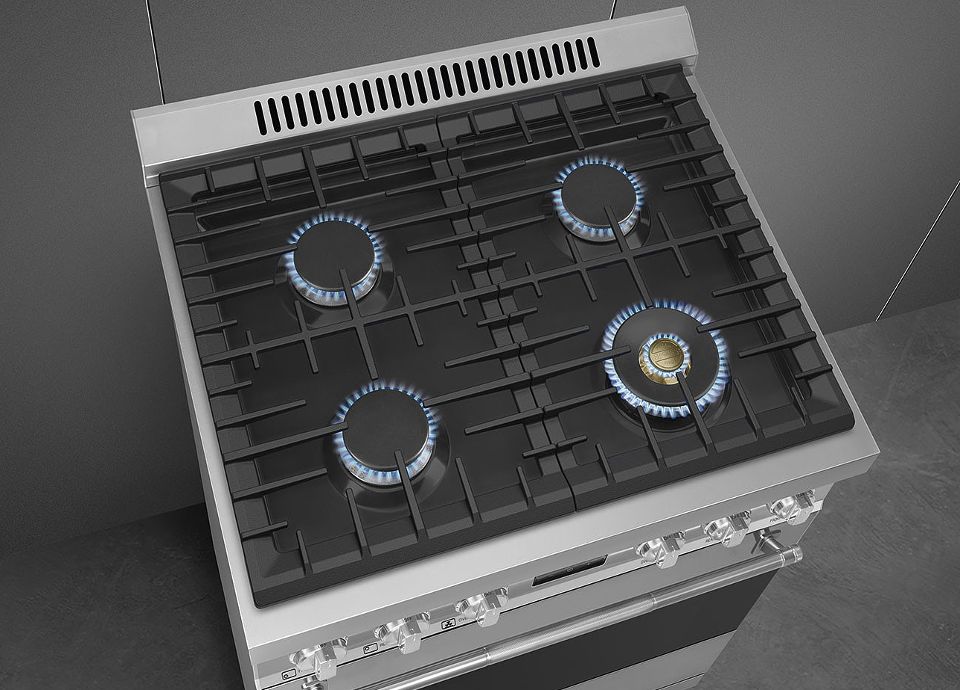

ENAMELED TOP

ENAMELED TOP

The cooktop has a renewed look thanks to a black, enameled surface equipped with three standard burners and an additional powerful brass burner with an engraved SMEG logo.

REVAMPED DESIGN

SMEG SPR ranges interpret cooking trends with a professional look and elegant details such as sturdy knobs and a knurled handle. They perfectly adapt to all spaces and ensure a perfect slot-in installation.

CAST IRON GRATES

The Smeg professional range cooktop has a renewed look thanks to a black enameled surface and resistant continuous cast iron grates with a new US design.

MULTILEVEL CAVITY

The gas oven ensures maximum versatility for any type of preparation thanks to six cooking levels and an impressive capacity of 4.5 cu. ft.

REMOVABLE GLASS

To facilitate cleaning and guarantee the best ease-of-use of the oven beneath the cooktop, the internal glass of the door is easily removable.

SOFT CLOSE

The soft close system guarantees a gentle closing of the door, without the need for it to be accompanied manually.

Aesthetic

Heavy duty cast iron pan stands: for maximum stability and strength. Knobs control ...
Color: Stainless steel
Finishing: Satin
Series: Professional
Material: Stainless steel
Cooktop color: Black enamel
Grates: Cast Iron
Control setting type: Control knobs
Control knobs: Pro-style control knobs
No. of controls: 6
Display: Touch
Handle: Robust knurled handle
Handle color: Brushed stainless steel
Feet: Stainless steel

Type

Gas ovens offer instantaneous heat control, reduced cooking times and the ability to bake at much lower temperatures than electric ovens. Gas ovens offer instantaneous heat control, reduced cooking times and the ability to bake at much lower temperatures than electric ovens.
Product family: Range
Range size: 30"
Cooker configuration: Full gas
Cooktop type: Gas
Range fuel: Gas
N. of ovens: 1
Main oven: Gas with grill
EAN code: 8017709304423
Installation positioning of the appliance: Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1

Programs / Functions

Other functions
  • Defrost by time: with this function the time of thawing of foods are determined automatically. Defrost by time
Traditional cooking functions
  • Grill element: Using of grill gives excellent results when cooking meat of medium and small portions, especially when combined with a rotisserie (where possible). Also ideal for cooking sausages and bacon. Large grill
  • Lower heating element only: This function is ideal for foods that require extra base temperature without browning, e.g. pastry dishes, pizza. Also suitable for slow cooking of stews and casseroles. Bottom
  • Circogas: In gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning. Convection bottom

Main oven options

Minimum Temperature: 250 °F
Maximum temperature: 500 °F

Cooktop technical features

Cooking zones: 4
Zone 1 - Power: 3510 W
Zone 1 - Power: 12000 BTU
Zone 2 - Power: 2930 W
Zone 2 - Power: 10000 BTU
Zone 3 - Power: 2930 W
Zone 3 - Power: 10000 BTU
Zone 4 - Power: 5270 W
Zone 4 - Power: 18000 BTU
Burner caps: Enameled matte black
Automatic gas ignition: Yes
Gas safety valves: Yes

Main Oven Technical Features

Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. Soft close: all models are equipped with advanced function of smooth closing of the door, which allows the device to close smoothly and quietly. The oven cavity has 6 different cooking levels. Air cooling system: to ensure a safe surface temperatures. Side lights: Two opposing side lights increase visibility inside the oven. Triple glazed doors: Number of glazed doors.
Volume: 4.56 cu. ft.
Cavity material: EverClean enamel
No. of shelves: 6
No. of lights: 1
Light type: Halogen
Light Power: 40 W
Fan number: 1
Light on when door is open: Yes
Removable door: Yes
Total no. of door glasses: 3
Cooling system: Tangential
Grill type: Gas
Soft Close system: Yes

Electrical Connection

Plug: (B) NEMA 5-15P
Current: 15 A
Circuit breaker: 15 A
Voltage: 120 V
Frequency: 60 Hz
Power cord length: 59 1/16 "
Type of electric cable installed: Yes, Single phase

Gas Connection

Gas Type: G20 Natural gas

Logistic Information

Dimensions: 884x760x660 mm
Width: 29 15/16 "
Height: 34 13/16 "
Depth: 25 "
Packaged dimensions: 865X836X705 mm
Gross weight: 237 lbs
Net weight: 213 lbs
Packaged width: 32 15/16 "
Packaged depth: 27 3/4 "
Packaged height: 34 1/16 "
Maximum stackability: 4
Packaging: Shrink-wrapped
Packaging composition - Paper: 14 lbs
Packaging composition - Polystyrene: 3 lbs
Packaging composition - Wood: 5 lbs
Packaging composition - Plastics: 2 lbs

Accessories Included

Other gas nozzles included: G30 LPG liquid gas

Accessories included for main oven and cooktop

Oven wire rack: 2

Optional

KITTKSPR30
KITTKSPR30
Accessories, Type: Toe kick, Ranges
PPR2
PPR2
Accessories, Type: Pizza stone, Ovens, Ranges
GRM
GRM
Accessories, Type: Reduction Grid, Ranges, Cooktops
WOKGHU
WOKGHU
Accessories, Type: Reduction Grid, Ranges, Cooktops
GT3T
GT3T
Accessories, Type: Telescopic Guides, Ranges
PRTX
PRTX
Accessories, Type: Pizza stone, Ovens, Ranges
PALPZ
PALPZ
Accessories, Type: Pizza shovel, Ovens, Ranges

Technical drawing

Download (mm) (png)
Download (mm) (png)

Instruction manual

Installation Manual (EN) (pdf)
Other Instructions (EN) (pdf)
User manual (EN) (pdf)

Warranty

Warranty certificate (ALL) (pdf)

Product sheet

Download

3D file

Download

Regulatory Diclosures

Download
