Cooker Portofino CPF9GPWH

Product Family
Cooker
Cooker size
90x60 cm
Aesthetics
Portofino
Colour
White
Hob type
Gas
Main oven type
Thermo-ventilated
Energy efficiency class
A+
???Class_Arrows_A+++D_A+???
Find Resellers

You might also be interested in

5 Year extended warranty

This appliance qualifies for a comprehensive Smeg 5-year warranty assistance package covering all parts and labour. Buy with confidence and added peace of mind.

This offer is available on purchases made before 31st December 2024. To find out more and to redeem upon purchase, please click below.

Find out more
  • Highlights
  • Features
  • Accessories
  • Download

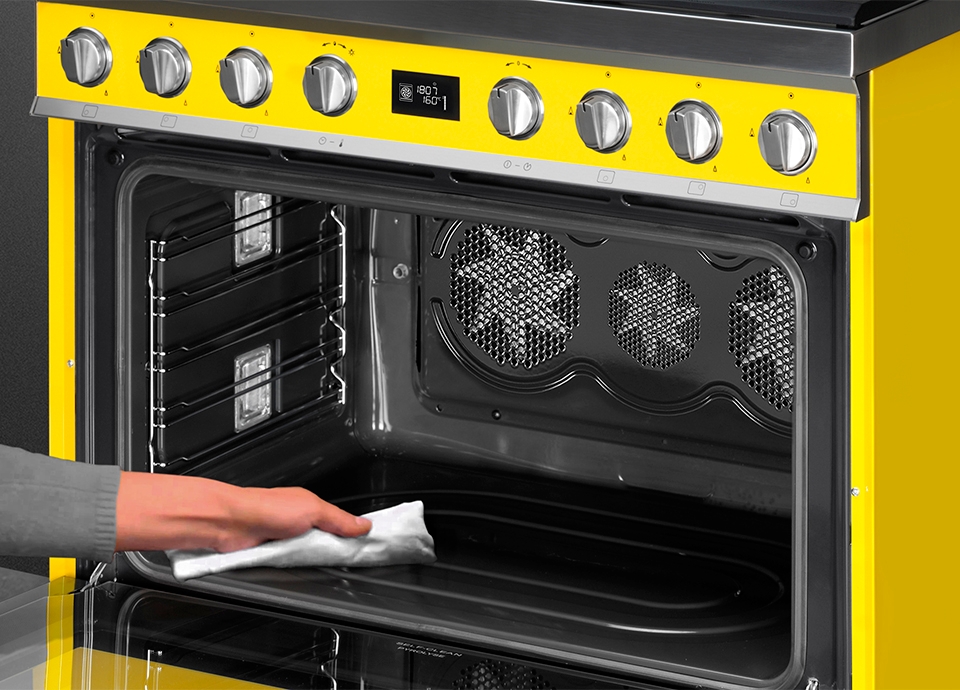

Pyrolytic cleaning

Pyrolytic cleaning

Smeg's pyrolitic oven cavity is designed to eliminate corners, holes and joints whilst every element inside the cavity can be easily removed: the upper grill has a tilting mechanism, and the side oven shelf brackets can be removed and washed in the dishwasher.

Through the automatic pyrolytic cleaning function, all the dirt and grease stuck to the walls of the oven is burned away effortlessly, without the need for detergents, thanks to the extremely high temperature reached by the oven (500 °C).

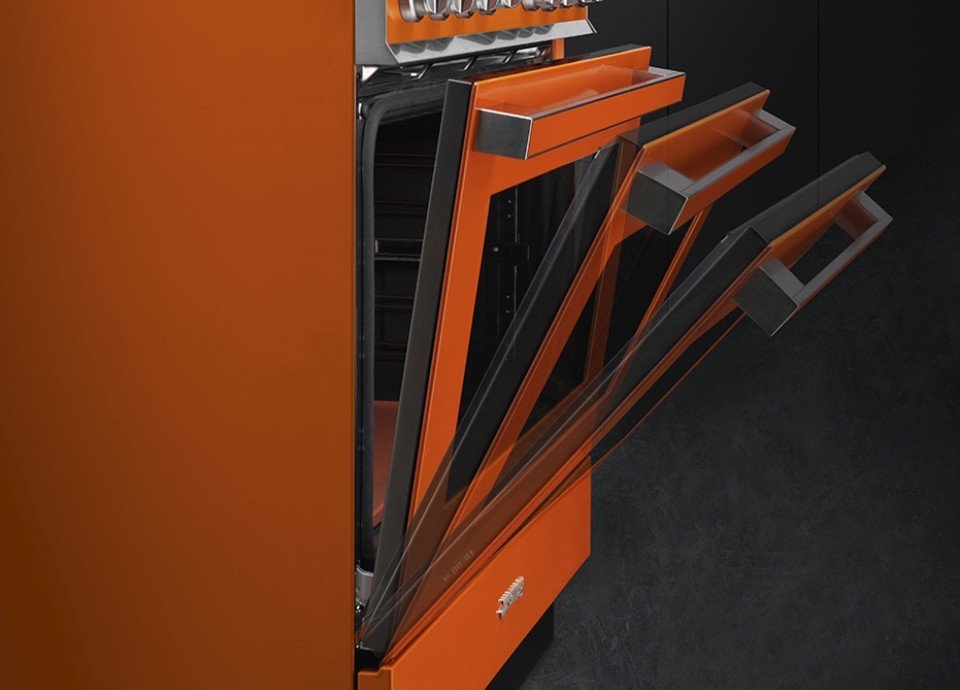

Soft Close Doors

Soft Close Doors

The Portofino cooker door is equipped with smooth soft close hinges which can make all the difference when opening & shutting the door regularly.

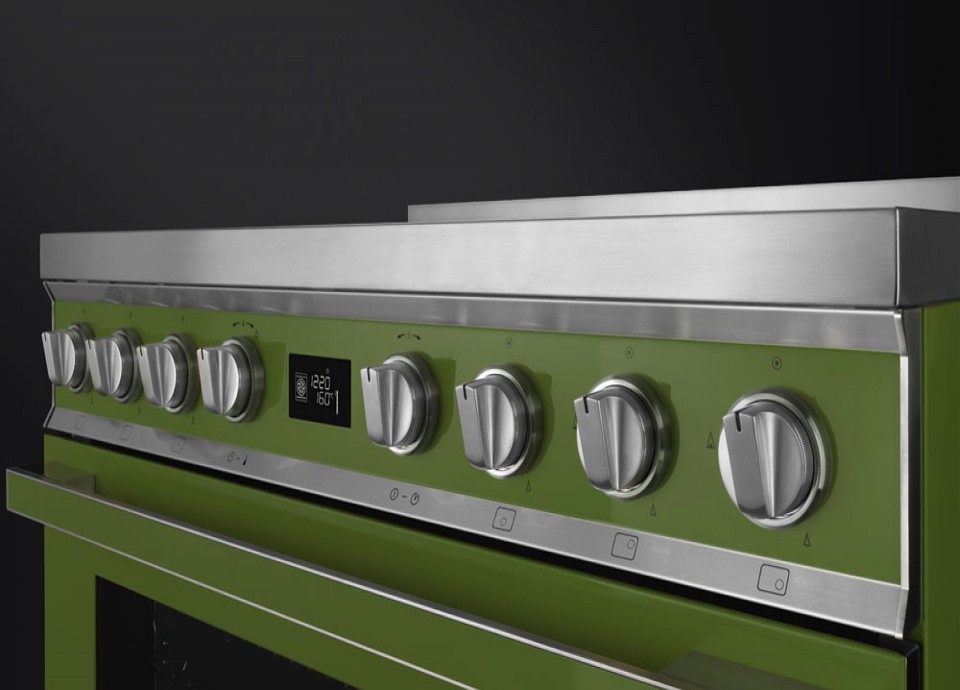

Sturdy Controls

Sturdy Controls

Featurung solid, chunky metal knobs - the Portofino's controls are robust and extremely ergonomic.

TRIPLE FAN TECHNOLOGY

The oven is equipped with an exclusive three-fan system which, combined with the greater power of the motors, allows excellent cooking performance to be achieved. The two large side fans distribute the air around the perimeter of the cavity while the small central one increases ventilation by creating a vertical heat vortex. This uniformed temperature allows you to cook evenly on all five levels, just like in professional kitchens.

5 YEAR WARRANTY PROMOTION

5 YEAR WARRANTY PROMOTION

This appliance qualifies for a comprehensive Smeg 5-year warranty assistance package covering all parts and labour. Buy with confidence and added peace of mind.

This offer is available on purchases made before 30th June 2024. To find out more and to redeem upon purchase, please click below.

Find out more
Professional cooking

Professional cooking

Now its possible to create professional standard dishes at home thanks to precisely controlled cooking programmes, superb safety features and simple easy to use programmes.

The Portofino range is available in 8 different colours and configurations such as a pyrolytic oven with gas hob or induction hob model.

CLOSED DOOR GRILLING
CLOSED DOOR GRILLING

Closed door grilling allows you to grill with the door closed, keeping cooking smells inside the oven and out of the kitchen to ensure a safe cooking environment and reduced energy consumption.

Easy clean enamel interior
Easy clean enamel interior

The enamel finish of the oven cavity has a special antacid lining which helps to reduce the amount of dirt adhering to the surface.

5 cooking levels
5 cooking levels

5 different cooking levels guarantee maximum flexibility, allowing you to cook different dishes at the same time. Ideal when you need to quickly  prepare more dishes or large quantities of food.

Aesthetics

Heavy duty cast iron pan stands: for maximum stability and strength. Knobs control With a simple and intuitive interface, the COMPACTscreen provides a pleasant user experience, thanks to the interaction with the knobs.
Colour: White
Design: Flush fit
Aesthetics: Portofino
Command panel finish: Enamelled metal
Material: Enamelled
Upstand: Yes
Hob colour: Stainless steel
Type of pan stands: Cast Iron
Type of control setting: Control knobs
Control knobs: Smeg Portofino
Controls colour: Stainless steel
No. of controls: 8
Display: TFT
Door: With frame
Glass type: Grey
Handle: Smeg Portofino
Handle Colour: coloured
Storage compartment: Push pull
Feet: Black
Plinth: Black

Type

Installation in column: Installation in column PYROLYSIS - AUTOMATIC CLEANING FUNCTION: the oven heats up to a temperature approaching 500 ° C and chars grease and food residues into a fine ash that can be easily wiped off with a damp cloth. At such a high temperature, the door locks automatically for safety, while the temperature of the door remains controlled so it is safe to touch User adjustable function based on the level of dirt present in the oven.
Product Family: Cooker
Cooker size: 90x60 cm
Cooker configuration: Dual fuel
Hob type: Gas
Hob energy type: Gas
N. of ovens: 1
Main oven type: Thermo-ventilated
EAN code: 8017709229399
Installation positioning of the appliance: Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Cleaning system: Pyrolytic

Programs / Functions

Automatic programs: 20
Other functions
  • Defrost by time: Manual defrost function. At the end of the set duration, the function stops. Defrost by time
  • Defrost by weight: Automatic defrost function. You choose the type of food to defrost from the available categories (MEAT - FISH - BREAD - DESSERTS) After entering the weight of the food, the oven automatically defines the time required for proper defrosting. Defrost by weight
  • Air at 40°C provides the perfect environment for proving yeast type dough mixes. Simply select the function and place dough in the cavity for allotted Proving
  • SABBATH: function that allows to cook food respecting Judaism's day of rest provisions. Sabbath
Traditional cooking functions
  • Static: Traditional cooking suitable for the preparation of one dish at a time. The fan is not active and the heat comes from below and from above at the same time. Static cooking is slower and more delicate, ideal in order to get well cooked and dry dishes even inside. Ideal for cooking all types of roasts, fatty meats, bread, filled cakes. Static
  • Fan assisted: Intense and homogeneous traditional cooking, also suitable for complex recipes. The fan is active and the heat comes from below and from above at the same time. Ventilated cooking ensures a faster and more homogeneous result, leaving fragrant foods outside and moister inside. Ideal for baked pasta, biscuits, roasts and cobblers. Fan assisted
  • Circulaire: it is the perfect function for cooking all types of dishes in a more delicate way. The heat comes from the back of the oven and is distributed quickly and evenly The fan is active. It is also ideal for cooking on multiple levels without mixing smells and flavors. Circulaire
  • Turbo: the heat comes from 3 directions: above, below and from the back of the oven The fan is active. It allows quick cooking, even on several shelves without mixing the aromas. Ideal for large volumes or foods that require intense cooking. Turbo (circulaire + bottom + upper + fan)
  • ECO: low energy consumption cooking: this function is particularly suitable for cooking on a single shelf with low energy consumption. It is recommended for all types of food except those that can generate a lot of moisture (for example vegetables). To achieve maximum energy savings and reduce time, it is recommended to put the food in the oven without preheating the cooking compartment ECO
  • Half grill: For rapid cooking and browning of foods. Best results can be obtained by using the top shelf for small items, the lower shelves for larger ones, such as chops or sausages. For half grill heat is generated only at the centre of the element, so is ideal for smaller quantities. Small grill
  • Grill: Very intense heat coming only from above from a double heating element. The fan is not active. Provides excellent grilling and gratinating results. Used at the end of cooking, it gives a uniform browning to dishes. Large grill
  • Fan grill: very intense heat coming only from above from a double heating element The fan is active. It allows the optimal grilling of thickest meats. Ideal for large cuts of meat. Fan grill (large)
  • Base: the heat comes only from the bottom of the cavity. The fan is not active. Ideal for sweet and savory pies, cobblers and pizzas. Designed to complete cooking and make food more crunchy This symbol in gas ovens indicates the gas burner. Base
  • Fan assisted base: the mix of fan and lower heating element alone allows to finish cooking foods already cooked on the surface but not internally more quickly. This system is recommended to finish cooking foods that are already well cooked on the surface, but not internally, which therefore require a moderate higher heat. Ideal for any type of food. Fan assisted base
Cleaning functions
  • PYROLYSIS - AUTOMATIC CLEANING FUNCTION: the oven heats up to a temperature approaching 500 ° C and chars grease and food residues into a fine ash that can be easily wiped off with a damp cloth. At such a high temperature, the door locks automatically for safety, while the temperature of the door remains controlled so it is safe to touch User adjustable function based on the level of dirt present in the oven. Pyrolytic
  • Pyrolitic: The Eco pyrolitic cleaning function can be selected when the oven has a lighter build up of dirt. This function has a maximum duration of 1.5 hours. Pyrolytic eco

Options Main Oven

Timer: Yes
End of cooking acoustic alarm: Yes
Minimum Temperature: 50 °C
Maximum temperature: 260 °C

Hob technical features

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
Total no. of cook zones: 6
1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Front centre
4th zone position: Rear centre
5th zone position: Front right
6th zone position: Rear right
1st zone type: Gas - 2UR (dual)
2nd zone type: Gas - AUX
3rd zone type: Gas - AUX
4th zone type: Gas - Semi Rapid
5th zone type: Gas - Semi Rapid
6th zone type: Gas - Rapid
1st zone power: 4.20 kW
2nd zone power: 1.00 kW
3rd zone power: 1.00 kW
4th zone power: 1.80 kW
5th zone power: 1.80 kW
6th zone power: 3.00 kW
Type of gas burners: Standard
Burner caps: Matt black enamelled
Automatic electronic ignition: Yes
Gas safety valves: Yes

Main Oven Technical Features

Electronic control: Allows you to maintain temperature inside the oven with the precision 2-3 ° C. This enables to cook meals that are very sensitive to temperature changes, such as cakes, souffles, puddings. Triple Fan Technology: The oven is equipped with an exclusive three fan system, which, combined with the increased power of the motors, enables excellent cooking performance. The two large side fans distribute the air around the outer perimeter of the cavity while the smaller central fan increases ventilation by creating a vertical vortex of heat. Accordingly, the temperature within the cavity is uniform, allowing food to be cooked evenly on all five levels, like in professional kitchens. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Quadruple glazed: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time. It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity. It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking Soft close: all models are equipped with advanced function of smooth closing of the door, which allows the device to close smoothly and quietly. The oven cavity has 5 different cooking levels. The inner door glass: can be removed with a few quick movements for cleaning. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity: 115 litres
Gross volume, 1st cavity: 129 l
Cavity material: Easy clean enamel
Shelf positions: 5
Type of shelves: Metal racks
No. of lights: 2
Light type: Halogen
Light power: 40 W
Fan number: 3
Cooking time setting: Start and Stop
Door opening: Flap down
Light when oven door is open: Yes
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
Total no. of door glasses: 4
No.of thermo-reflective door glasses: 3
Door Lock During Pyrolisis: Yes
Safety Thermostat: Yes
Cooling system: Tangential
Heating suspended when door is opened: Yes
Grill type: Electric
Grill elememt: 1700 W
Large grill - Power: 2900 W
Lower heating element power: 1700 W
Upper heating element - Power: 1200 W
Circular heating element - Power: 2 x 1850 W
Soft Close system: Yes
Temperature control: Electronic

Performance / Energy Label

???Class_Arrows_A+++D_A+???
Energy efficiency class: A+
GAS - Energy consumption in fan-forced convection, first cavity: 5.22 MJ
Energy consumption forced air convection (kWh) first cavity: 1.45 KWh
GAS - Energy consumption conventional mode, first cavity: 3.02 MJ
Energy consumption conventional first cavity (kWh): 0.84 KWh

Electrical Connection

Max Power Draw: 4000 W
Current: 18 A
Voltage: 220-240 V
Voltage 2 (V): 380-415 V
Frequency: 50/60 Hz
Additional connection modalities: Yes, Double and Three Phase
Type of electric cable: Yes, Single phase

Gas Connection

Gas connection rating (W): 12500 W
Gas Type: G20 Natural gas

Logistic Information

Dimensions of the product HxWxD (mm): 900x900x600 mm
Width (mm): 900 mm
Product Height (mm): 900 mm
Depth (mm): 600 mm
Dimensions of the packed product (mm): 860X960X670 mm
Gross weight (kg): 105.700 kg
Net weight (kg): 95.800 kg
Packed width: 960 mm
Packaged depth: 670 mm
Height (mm) packed: 860 mm
Maximum stackability: 5
Type of packaging: Shrinkwrap
Packaging composition - paper & cardboard (kg): 4.854 kg
Packaging composition - polystyrene (kg): 1.442 kg
Packaging composition - wood (kg): 2.660 kg
Packaging composition - plastic (kg): 0.959 kg

Accessories Included

Other gas nozzles included: G30 LPG liquid gas

Accessories included for Main Oven & Hob

Rack with back and side stop: 1
Grill mesh: 1
20mm deep tray: 1
40mm deep tray: 1
Telescopic Guide rails, partial Extraction: 1

Optional

GTT
GTT
Accessories, Type: Telescopic guides, Ovens, Cookers
GTP
GTP
Accessories, Type: Telescopic guides, Ovens, Cookers
AIRFRY9
AIRFRY9
Accessories, Type: Pan stands, Ovens, Cookers
BBQ9
BBQ9
Accessories, Type: Pan stands, Ovens, Cookers
PRTX
PRTX
Accessories, Type: Gourmet cooking stone, Ovens, Cookers
PALPZ
PALPZ
Accessories, Type: Pizza shovel, Ovens, Cookers
PPR9
PPR9
Accessories, Type: Gourmet cooking stone, Ovens, Cookers

Technical drawing

Download (png)

Instruction manual

User manual (EN) (pdf)
Other Instructions (ALL) (pdf)

Warranty

Warranty certificate (EN) (pdf)

Energy Label

Download (EU)
Download (UK)

Product information sheet

Download (EU)
Download (UK)

Product sheet

Download

Brochure

Download

3D file

Download
