Sink Universal LZ102CT

Product Family
Sink
Aesthetics
Universal
Sink type
Synthetic sink
Building in type
Standard
Drainer
Reversible
No. of bowls
1 + 1/2
Find Resellers
  • Highlights
  • Features
  • Accessories
  • Download
COMPOSITE GRANITE SINKS

COMPOSITE GRANITE SINKS

Composite sinks have the appearance of natural stone whilst retaining all the practical advantages of resistance to high temperatures, impacts, and scratches.

They are ergonomic, easy to clean and easy to install as they are reversible and can be easily mounted.

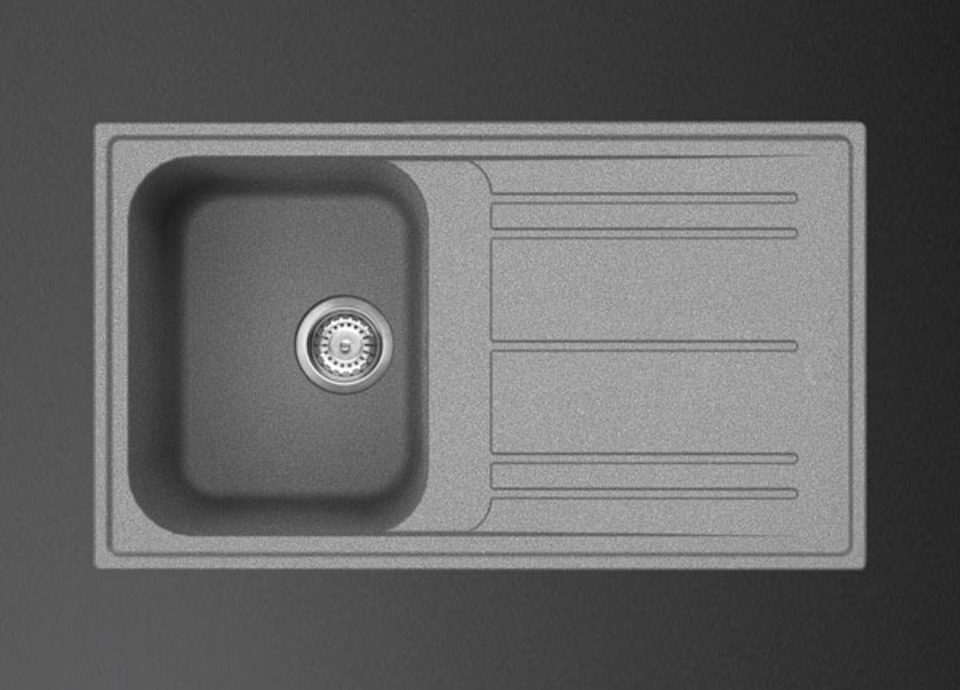

MODEL SHOWN: LZ861CT

Type

Thanks to the double tap hole, most of our sinks are easily reversible, giving you the flexibility to make any type of kitchen composition.
Product Family: Sink
Sink type: Synthetic sink
Sink material: Composite
Sink dimensions: 100 cm
No. of bowls: 1 + 1/2
Drainer: Reversible
EAN code: 8017709251697

Aesthetics

Standard installation: Traditional installation in tabletop, suitable for any kitchen sets
Colour: Cement / Concrete
Aesthetics: Universal
Series: Rigae
Tap hole / precut tap hole: Prepared
Half bowl cup drainer: Yes
Building in type: Standard

Technical Features

Antibacterial Antiscratch Termal schock resistant High temperatures resistant Impact resistant Easy to clean UV protection, does not fade over time. Cupboard width required for sink installation
Width (mm): 1000 mm
Frame depth (mm): 10
Cutout radius: 30 mm
Height from kitchen top: 10 mm
Cutout dimension (mm): 980 X 480 mm
Tap hole: Yes
Tap hole diameter: 35 mm
Dividing wall width: 38 mm
Drainer inclination: 2 °
No. of clips: 10
Type of clips: Standard
Accessories for installation: Strainer, Siphon with dishwasher outlet connection, Siphon save space with dishwasher outlet connection, Fixing clips, Gasket, Pre-assembled gasket, UV Resistant
Base unit size: 60 cm

RH Bowl

Sink depth - depending on the model, the depth can be from13 to 24,5
Bowl type: Half bowl
Bowl dimensions, WxDxH (mm): 150 x 340 x 168 mm
Bowl depth (mm): 168 mm
Radius corner right bowl (mm): 50 mm
Strainer position: Centre of bowl
Strainer dimension: 3.5"

LH Bowl

Sink depth - depending on the model, the depth can be from13 to 24,5
Bowl type LH: Traditional
Bowl dimensions LH, WxDxA (mm): 420 x 320 x 210 mm
LH Bowl depth (mm): 210 mm
Radius corner left bowl: 80 mm
Overflow LH bowl: Yes, traditional
Strainer position LH bowl: Side bowl
Strainer dimension LH bowl: 3.5"

Logistic Information

Dimensions of the product WxDxH (mm): 210x1000x500 mm
Net weight (kg): 15.200 kg
Gross weight (kg): 18.490 kg
Depth (mm): 500 mm
Product Height (mm): 210 mm
Packed width: 1080 mm
Packaged depth: 575 mm
Height (mm) packed: 300 mm
Dimensions of the packed product (mm): 300X1080X575 mm
Maximum stackability: 14
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 3.200 kg
Packaging composition - polystyrene (kg): 0.000 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.112 kg

Accessories Included

Accessories for installation: Strainer, Siphon with dishwasher outlet connection, Fixing clips

Technical drawing

Download (png)

Instruction manual

User manual (ALL) (pdf)

Product sheet

Download

Brochure

Download

3D file

Download
