Hob Dolce Stil Novo SIM693WLDR

Product Family
Hob
Aesthetics
Dolce Stil Novo
Type
Induction
Dimensions
90 cm
Built-in
Traditional

You might also be interested in

5 Year extended warranty

This appliance qualifies for a comprehensive Smeg 5-year warranty assistance package covering all parts and labour. Buy with confidence and added peace of mind

This offer is available on purchases made before 31st December 2024. To find out more and to redeem upon purchase, please click below.

  • Highlights
  • Features
  • Accessories
  • Download

DOLCE STIL NOVO AESTHETIC

Dolce Stil Novo presents the ultimate style and embodies all the latest appliance innovations. The play on light and shadow and the technical excellence of the products are the distinctive features of this range.



VIEW THE RANGE

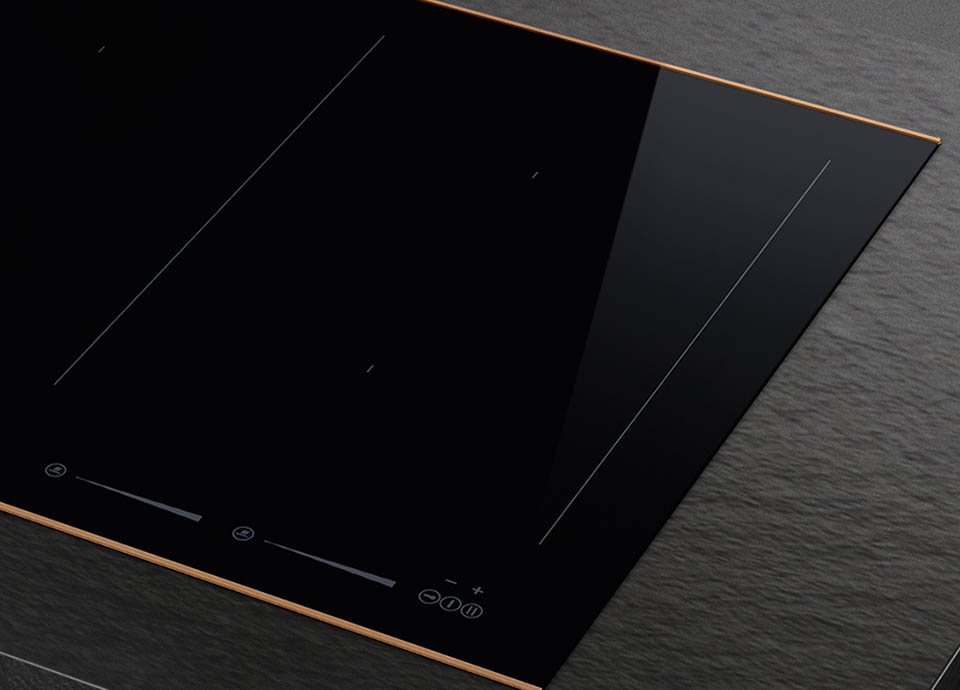

Distinctive Detailing

Characterised by premium black ceramic glass, Dolce Stil Novo induction hobs are embellished with refined details such as the copper and stainless steel profiles for that luxe look.

The slider control panel allows the user to adjust the heat level by simply running a finger across the touch surface.

Multizone Operation

Smeg's MultiZone heating zone can be used as two independent cooking zones or combined into a single zone.

Each zone automatically adapts to the size and position of the dishes and is heated only where the pans locate, providing better heat distribution.

Fast operation

Induction allows for precise temperature control when doing intricate cooking, or simmering for example. Heat is only generated when the pan comes into direct contact of the specific cooking zone, ensuring safety in the presence of children. This helps optimise power consumption, only using the energy needed to heat the pan itself.

Induction is faster than gas cooking taking only a little over a minute to boil a pint of water. Another benefit is that any splashes will not burn onto the hob top and are easily wiped clean making it safe and user friendly.

NATURAL MATERIALS

Like many natural materials, slight imperfections in metals are to be expected, along with natural discolouration of these materials over time through useage and exposure to sunlight.

Type

Standard installation: Traditional installation in tabletop, suitable for any kitchen sets Induction: The work of these hobs is based on the principle of electromagnetic induction. The heat is generated directly in the bottom of the pan during its contact with the hob.
Product Family: Hob
Dimensions: 90 cm
Type: Induction
Built-in: Traditional
Power supply: Electric
EAN code: 8017709221959

Aesthetics

Premium individual Slider control for each zone The slider control panel allows you to adjust the power simply by passing your finger across the touch
device. Darkness becomes light
Colour: Black
Finishing: Copper
Aesthetics: Dolce Stil Novo
Components finishing: Copper
Material: Glass
Glass Type: Eclipse ceramic
Type of control setting: Multi Slider
Control knobs position: Front
Slider: Yes
Slider: White
Glass edge: Straight edge
Serigraphy colour: Grey

Programs / Functions

Power booster: option allows the zone to work at full power when very intense cooking is necessary.
Total no. of cook zones: 6
No. of induction cook zones: 6
No. of cooking zones with booster: 6
No. of Flexible zones: 3
Main on/off switch: Yes
Power levels: 9

Options

Multizone: allows several pans to be used at once, large or small, offering freedom of placement and greater flexibility Quick selection, with one touch cooking begins at the highest level, then automatically reduces after time. Ideal for dishes that require quick boiling and then continued cooking without constant control (eg beef broth). Timer: All ceramic hobs have a timer which automatically ends cooking after a preset time. Time elapsed: shows how long the cooking zone has been in use. Child lock: some models are fitted with a device to lock the programme/cycle so it cannot be accidentally changed. This function allows you to keep cooked food warm without burner it All cooking zones can be reduced to the minimum power level, so the hob can be left unattended for a short period without
food overcooking or burning. Then just press again this function, the previously set power levels can be reactivated. Melting function, suitable for slowly melting delicate foods such as chocolate or butter. Simmering function: ideal for long-cooking recipes, preventing food from boiling over or sticking to the pan.
Standard cut out: 490x880 mm
Multizone Option: Yes
Flexible Zone Type: MultiZone
End cooking timer: 6
Pause option: Yes
Minute minder: 1
End of cooking acoustic alarm: Yes
Residual time indicator: Yes
Show Room Demo Option: Yes
Control Lock / Child Safety: Yes
Keep warm automatic function: Yes
Simmering Function: Yes
Melting/Low temperature cooking function: Yes
Rapid level selection: Yes

Cooking zones

1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Front centre
4th zone position: Rear centre
5th zone position: Front right
6th zone position: Rear right
1st zone type: Induction - Multizone
2nd zone type: Induction - multizone
3rd zone type: Induction - Multizone
4th zone tipe: Induction - multizone
5th zone type: Induction - Multizone
6th zone type: Induction - multizone
1st zone dimensions: 18.0x23.0 cm
2nd zone dimensions: 18.0x23.0 cm
3rd zone dimensions: 18.0x23.0 cm
4th zone dimensions: 18.0x23.0 cm
5th zone dimensions: 18.0x23.0 cm
6th zone dimensions: 18.0x23.0 cm
Left Multizone dimension: 38.5x23.0 cm
Central Multizone dimension: 38.5x23.0 cm
Right Multizone dimension: 38.5x23.0 cm
1st zone power: 2.10 kW
2nd zone power: 2.10 kW
3rd zone power: 2.10 kW
4th zone power: 2.10 kW
5th zone power: 2.10 kW
5th zone power: 2.10 kW
1st zone booster power: 3.60 kW
2nd zone booster power: 3.60 kW
3rd zone booster power: 3.60 kW
4th zone booster power: 3.60 kW
5th zone booster power: 3.60 kW
6th zone booster power: 3.60 kW
Booster power left Multizone: 3.60 kW
Booster power central Multizone: 3.60 kW
Booster power right Multizone: 3.60 kW

Technical Features

Overheat protection: The safety system that automatically turns off the hob in case of overheating of the control unit. Overfill protection: The special overfill protection shuts down the stove in the presence of overflow of liquids. Permanent auto pot detection Indication of residual heat: After the glass ceramic hob is switched off the residual heat indicator shows which of the heating zones still remains hot. When the temperature drops below 60 ° C, the indicator goes out. Min diameter pot detection of 9 cm
Automatic setting according to pan dimension: Yes
Permanent Automatic Pot Detection with indication of the relative control: Yes
Automatic pan detection: Yes, min 9 cm
Automatic switch off when overheat: Yes
Automatic switch off when overflow: Yes
Residual heat indicator: Yes
Protection against accidental start up: Yes

Performance / Energy Label

Hob energy consumption: 195 Wh/Kg
1st zone energy consumption: 195 Wh/Kg
2nd zone energy consumption: 195 Wh/Kg
Energy consumption zone 3: 195 Wh/Kg
Energy consumption zone 4: 195 Wh/Kg
Energy consumption zone 5: 195 Wh/Kg
Energy consumption zone 6: 195 Wh/Kg

Electrical Connection

Nominal power (W): 10800 W
Current: 47 A
Voltage (V): 220-240 V
Voltage 2 (V): 380-415 V
Frequency (Hz): 50/60 Hz
Type of electric cable: Universal
Power supply cable length: 150 cm

Logistic Information

Dimensions of the product HxWxD (mm): 53x900x510
Depth (mm): 510 mm
Width (mm): 900 mm
Product Height (mm): 53 mm
Net weight (kg): 16.600 kg
Gross weight (kg): 18.000 kg
Packed width: 1000 mm
Packaged depth: 620 mm
Height (mm) packed: 110 mm
Dimensions of the packed product (mm): 110X1000X620
Maximum stackability: 15
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 0.665 kg
Packaging composition - polystyrene (kg): 0.746 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.029 kg

Technical drawing

Instruction manual

Product information sheet

Product sheet

Brochure

3D file
