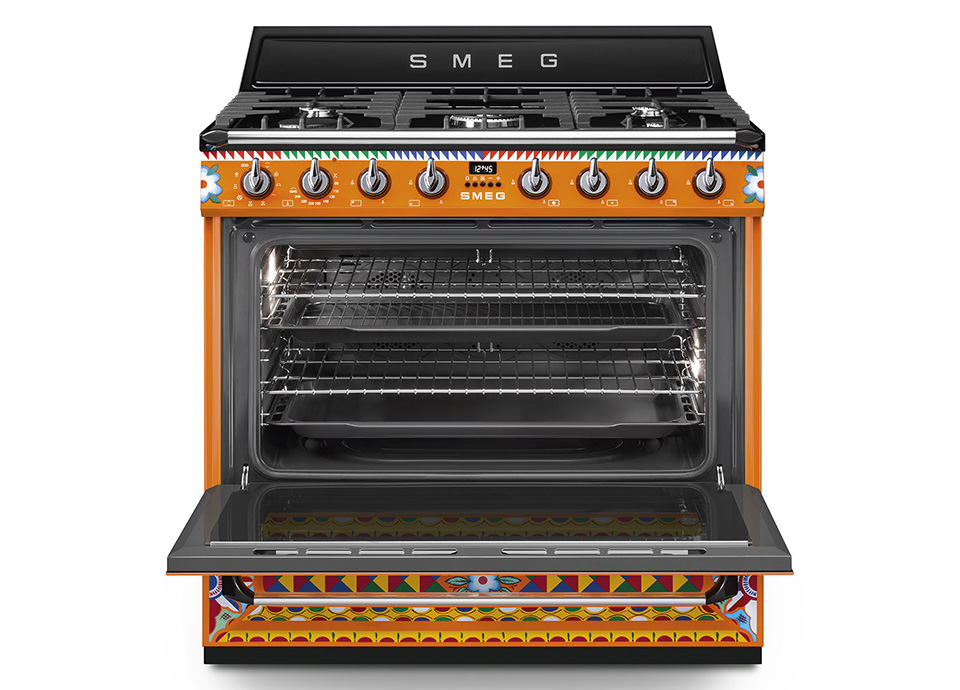

Divina Cucina Smeg & Dolce&Gabbana TR90DGC9

Product Family
Cooker
Cooker size
90x60 cm
Aesthetics
Victoria
Series
Divina Cucina
Colour
Decorated / Special
Hob type
Gas
Main oven type
Thermo-ventilated
Energy efficiency class
A
Decoration / Special colour
Carretto
???Class_Arrows_A+++D_A???
Find Resellers
  • Highlights
  • Features
  • Accessories
  • Download

Dolce&Gabbana and Smeg continue to join forces to celebrate all things ‘Made in Italy’ alongside the companies shared art and design values. Referencing the colours and beauty of Sicily, this revolutionary collaboration has re-invented the perception of home appliances, no longer merely products, but instead true works of art in the home.

The Divina cucina range plays tribute to Italy’s heritage, traditions and popular festivals in the form of a new freestanding range cooker and hood complete with matching fridge, all characterised by unique bold colours and narrative. This piece is inspired by Sicilian puppet theatre and traditional hand-painted carts, dominated by fiery tones of red and orange.

EXTRA VOLUME

EXTRA VOLUME

The TR90DGM9 Maiolica cooker features an extra-large 115  litre oven capacity, offering increased space and versatility for those wanting to optimise cooking times fo multiple dishes placed in the oven simultaneously, without flavour transfer.

CLOSED DOOR GRILLING
CLOSED DOOR GRILLING

Closed door grilling allows you to grill with the door closed, keeping cooking smells inside the oven and out of the kitchen to ensure a safe cooking environment and reduced energy consumption.

Easy clean enamel interior
Easy clean enamel interior

The enamel finish of the oven cavity has a special antacid lining which helps to reduce the amount of dirt adhering to the surface.

5 cooking levels
5 cooking levels

5 different cooking levels guarantee maximum flexibility, allowing you to cook different dishes at the same time. Ideal when you need to quickly  prepare more dishes or large quantities of food.

Aesthetics

Heavy duty cast iron pan stands: for maximum stability and strength. Knobs control
Colour: Decorated / Special
Design: Victoria
Finishing: Gloss
Aesthetics: Victoria
Command panel finish: Enamelled metal
Series: Divina Cucina
Collaborations: Smeg & Dolce&Gabbana
Decoration / Special colour: Carretto
Material: Enamelled
Upstand: Yes
Hob colour: Black enamel
Type of pan stands: Cast Iron
Type of control setting: Control knobs
Control knobs: Smeg Victoria
Controls colour: Stainless steel
No. of controls: 8
Display: electronic 5 buttons
Door: With frame
Glass type: Black
Handle: Smeg Victoria
Handle Colour: Polished chrome
Storage compartment: Drawer
Feet: none
Plinth: Anthracite

Type

Installation in column: Installation in column
Product Family: Cooker
Cooker size: 90x60 cm
Cooker configuration: Dual fuel
Hob type: Gas
Hob energy type: Gas
N. of ovens: 1
Main oven type: Thermo-ventilated
EAN code: 8017709268428
Installation positioning of the appliance: Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Cleaning system: Catalytic

Programs / Functions

Other functions
  • Defrost by time: Manual defrost function. At the end of the set duration, the function stops. Defrost by time
Traditional cooking functions
  • Static: Traditional cooking suitable for the preparation of one dish at a time. The fan is not active and the heat comes from below and from above at the same time. Static cooking is slower and more delicate, ideal in order to get well cooked and dry dishes even inside. Ideal for cooking all types of roasts, fatty meats, bread, filled cakes. Static
  • Fan assisted: Intense and homogeneous traditional cooking, also suitable for complex recipes. The fan is active and the heat comes from below and from above at the same time. Ventilated cooking ensures a faster and more homogeneous result, leaving fragrant foods outside and moister inside. Ideal for baked pasta, biscuits, roasts and cobblers. Fan assisted
  • Circulaire: it is the perfect function for cooking all types of dishes in a more delicate way. The heat comes from the back of the oven and is distributed quickly and evenly The fan is active. It is also ideal for cooking on multiple levels without mixing smells and flavors. Circulaire
  • ECO: low energy consumption cooking: this function is particularly suitable for cooking on a single shelf with low energy consumption. It is recommended for all types of food except those that can generate a lot of moisture (for example vegetables). To achieve maximum energy savings and reduce time, it is recommended to put the food in the oven without preheating the cooking compartment ECO
  • Grill: Very intense heat coming only from above from a double heating element. The fan is not active. Provides excellent grilling and gratinating results. Used at the end of cooking, it gives a uniform browning to dishes. Large grill
  • Fan grill: very intense heat coming only from above from a double heating element The fan is active. It allows the optimal grilling of thickest meats. Ideal for large cuts of meat. Fan grill (large)
  • Base: the heat comes only from the bottom of the cavity. The fan is not active. Ideal for sweet and savory pies, cobblers and pizzas. Designed to complete cooking and make food more crunchy This symbol in gas ovens indicates the gas burner. Base
  • Fan assisted base: the mix of fan and lower heating element alone allows to finish cooking foods already cooked on the surface but not internally more quickly. This system is recommended to finish cooking foods that are already well cooked on the surface, but not internally, which therefore require a moderate higher heat. Ideal for any type of food. Fan assisted base
  • Rotisserie: The rotisserie (where installed) works in combination with the grill element to brown foods to perfection. Rotisserie
Cleaning functions
  • Catalytic
  • Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity. Vapor Clean

Options Main Oven

Timer: Yes
End of cooking acoustic alarm: Yes
Minimum Temperature: 50 °C
Maximum temperature: 260 °C

Hob technical features

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
Total no. of cook zones: 5
1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Central
4th zone position: Rear right
5th zone position: Front right
1st zone type: Gas - Rapid
2nd zone type: Gas - Semi Rapid
3rd zone type: Gas - 2UR (dual)
4th zone type: Gas - Semi Rapid
5th zone type: Gas - AUX
1st zone power: 2.90 kW
2nd zone power: 1.80 kW
3rd zone power: 5.00 kW
4th zone power: 1.80 kW
5th zone power: 1.00 kW
Type of gas burners: Standard
Burner caps: Matt black enamelled
Automatic electronic ignition: Yes
Gas safety valves: Yes

Main Oven Technical Features

All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time. It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity. It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking Soft close: all models are equipped with advanced function of smooth closing of the door, which allows the device to close smoothly and quietly. The oven cavity has 5 different cooking levels. The inner door glass: can be removed with a few quick movements for cleaning. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity: 115 litres
Gross volume, 1st cavity: 129 l
Cavity material: Easy clean enamel
Shelf positions: 5
Type of shelves: Metal racks
No. of lights: 2
Light type: Halogen
Light power: 40 W
Fan number: 2
Cooking time setting: Start and Stop
Door opening: Flap down
Light when oven door is open: Yes
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
Total no. of door glasses: 3
No.of thermo-reflective door glasses: 2
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Grill elememt: 1700 W
Large grill - Power: 2900 W
Lower heating element power: 1700 W
Upper heating element - Power: 1200 W
Circular heating element - Power: 2 x 1550 W
Soft Close system: Yes
Temperature control: Electro-mechanical

Performance / Energy Label

???Class_Arrows_A+++D_A???
Energy efficiency class: A
GAS - Energy consumption in fan-forced convection, first cavity: 3.53 MJ
Energy consumption forced air convection (kWh) first cavity: 0.98 KWh
GAS - Energy consumption conventional mode, first cavity: 4.36 MJ
Energy consumption conventional first cavity (kWh): 1.21 KWh

Electrical Connection

Max Power Draw: 3200 W
Current: 14 A
Voltage: 220-240 V
Voltage 2 (V): 380-415 V
Frequency: 50/60 Hz
Power supply cable length: 120 cm
Type of electric cable: Yes, Single phase

Gas Connection

Gas connection rating (W): 12300 W
Gas Type: G20 Natural gas

Logistic Information

Dimensions of the product HxWxD (mm): 900x900x600 mm
Width (mm): 900 mm
Product Height (mm): 900 mm
Depth (mm): 600 mm
Dimensions of the packed product (mm): 1015X960X670 mm
Gross weight (kg): 111.800 kg
Net weight (kg): 96.300 kg
Packed width: 960 mm
Packaged depth: 670 mm
Height (mm) packed: 1015 mm
Maximum stackability: 4
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 8.766 kg
Packaging composition - polystyrene (kg): 2.180 kg
Packaging composition - wood (kg): 3.586 kg
Packaging composition - plastic (kg): 0.998 kg

Accessories Included

Other gas nozzles included: G30 LPG liquid gas

Accessories included for Main Oven & Hob

Cast iron wok support: 1
Moka stand in cast iron: 1
Rack with back and side stop: 1
Grill mesh: 1
20mm deep tray: 1
40mm deep tray: 1
Catalityc panels: 3

Optional

GTT
GTT
Accessories, Type: Telescopic guides, Ovens, Cookers
GTP
GTP
Accessories, Type: Telescopic guides, Ovens, Cookers
AIRFRY9
AIRFRY9
Accessories, Type: Pan stands, Ovens, Cookers
BBQ9
BBQ9
Accessories, Type: Pan stands, Ovens, Cookers
PRTX
PRTX
Accessories, Type: Gourmet cooking stone, Ovens, Cookers
PALPZ
PALPZ
Accessories, Type: Pizza shovel, Ovens, Cookers
PPR9
PPR9
Accessories, Type: Gourmet cooking stone, Ovens, Cookers
TPKTR9
TPKTR9
Accessories, Type: Teppanyaki grill, Cookers
KIT1TR9N
KIT1TR9N
Accessories, Type: Splashback, Cookers

Technical drawing

Download (png)

Instruction manual

User manual (EN) (pdf)
Other Instructions (ALL) (pdf)

Warranty

Warranty certificate (ALL) (pdf)

Energy Label

Download (EU)
Download (UK)

Product information sheet

Download (EU)
Download (UK)

Product sheet

Download

Brochure

Download
