Sink Universal VSTQ72-2

Product Family
Sink
Aesthetics
Universal
Sink type
Squared bowl
Building in type
Undermount
No. of bowls
1
  • Highlights
  • Features
  • Accessories
  • Download

STRONG STAINLESS STEEL

The Smeg portfolio includes a wide range of sinks to put the finishing touch to your kitchen. These sinks are carefully designed and constructed of high quality stainless steel in a substantial thickness, resulting in a long working life.

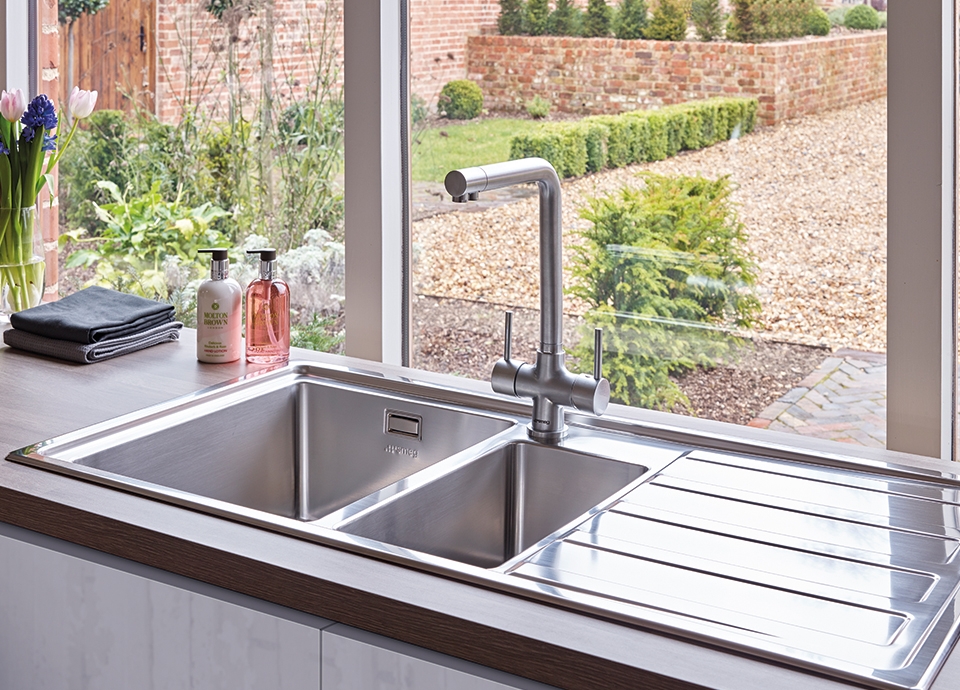

Model shown LD102

Aesthetics

Under table top installation: The sink is fixed under tabletop, which extends the work surface and the depth of the sink.
Colour: Stainless steel
Finishing: Brushed
Aesthetics: Universal
Series: Quadra
Type of steel: AISI304
Tap hole / precut tap hole: No Taphole
Building in type: Undermount

Type

Product Family: Sink
Sink type: Squared bowl
Sink material: Stainless steel
Sink dimensions: 72 cm
No. of bowls: 1
EAN code: 8017709125608

Technical Features

Cupboard width required for sink installation
Width (mm): 740 mm
Cutout radius: 5 mm
Cutout dimension undermount (mm): 398*720 mm
Tap hole diameter: 35 mm
Gasket type: Sealing paste
No. of clips: 8
Type of clips: Undermount clip
Base unit size: 80 cm

Bowl

Sink depth - depending on the model, the depth can be from13 to 24,5
Bowl type: Squared
Bowl dimensions, WxDxH (mm): 720 x 400 x 210 mm
Bowl thickness (mm): 1 mm
Bowl depth (mm): 210 mm
Overflow: Yes, traditional
Strainer position: Wall position
Strainer dimension: 3.5"

Logistic Information

Dimensions of the product WxDxH (mm): 210x740x418 mm
Net weight (kg): 8.400 kg
Gross weight (kg): 9.400 kg
Depth (mm): 418 mm
Product Height (mm): 210 mm
Packed width: 800 mm
Packaged depth: 480 mm
Height (mm) packed: 265 mm
Dimensions of the packed product (mm): 265X800X480 mm
Maximum stackability: 8
Type of packaging: Cardboard+supports
Packaging composition - paper & cardboard (kg): 1.476 kg
Packaging composition - polystyrene (kg): 0.110 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.019 kg

Accessories Included

Accessories for installation: Strainer, Siphon with dishwasher outlet connection, Fixing clips
