Integrated hood 75 cm Universale Aesthetic

  • Highlights
  • Features
  • Accessories
  • Download

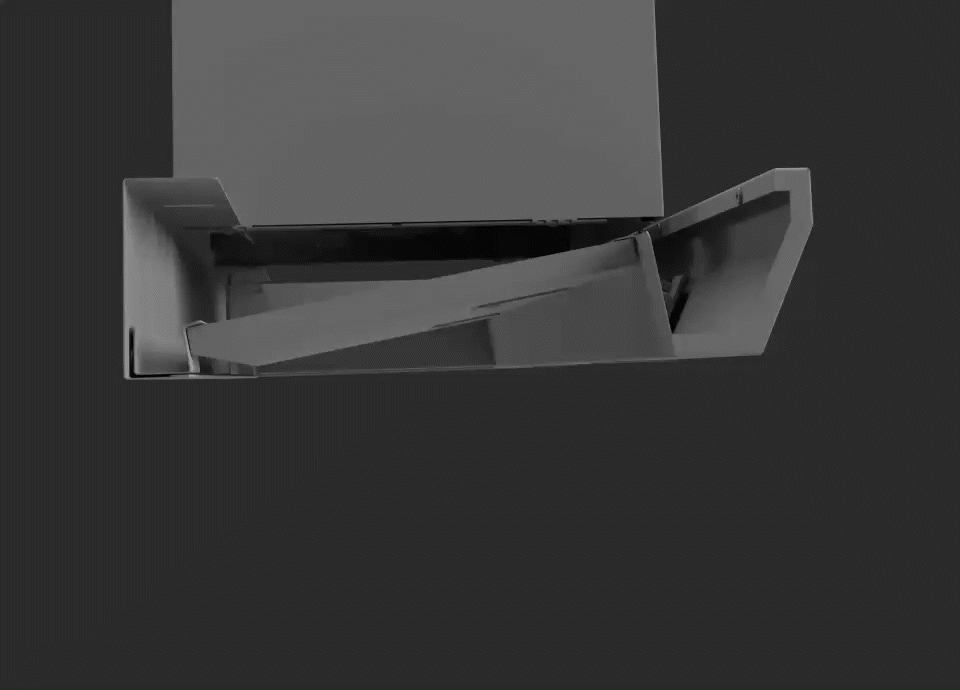

V-Condense System

V-Condense System prevents droplets to fall on the hob.

Thanks to its sloped stainless steel filters, the steam generated by cooking with induction hobs is collected in a special groove, preventing it from falling on the hob.

Clean air
The 24h air exchange function makes the hood work for 10 minutes every hour at very low speed and therefore without noise for a total of 24 hours in order to purify the air of the house, with low energy impact.
Intensitive function
The intensive function allows to operate the hood at maximum power, to speed up the elimination of the most persistent odors and to have a purified environment.
Adjustable light intensity
With the Dimmering function it is possible to raise or lower the intensity of the hood light by holding down the light button.

Type

Product family: Hood
Hood Type: Integrated hood
Hood width: 75 cm
Extraction: Extraction
Electronic control: Yes
EAN code: 8017709328351

Aesthetics

Colour: Stainless steel
Finishing: Satin
Aesthetic: Universale
Design: Fully integrated
Material: Stainless steel
Type of steel: Brushed

Programme / Functions

Intensive/turbo setting: when extra fast extraction is required. V-Condense System is a system that avoids the drips of condensation that you could show up on the hood within certain circumstance of use. 24h: When selected this function refreshes the air for c. 10 minutes every hour over a 24 hour period, at minimum speed and an imperceptible noise level. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically. Connection between hob and hood
No. of speeds: 3
Intensive speed: Yes
24h air filter function: Yes
Time-setting options: Automatic switch-off
V-Condense System: Yes
Auto-vent 2.0: Yes

Controls

Control setting: Touch control back-lighted White
Led color: White

Technical Features

Dimmering Lights Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Tunable white from warm to cold Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights: 2
Light type: LED
Light Power: 2.3 W
Dimmer mode: Yes
Light color temperature range: 2700° - 4000° °K
Free outlet maximum capacity: 820 m³/h
Motor power: 275 W
No. of filters: 2
Anti-grease filters: Stainless steel
Filter replacement indicator: Yes
Minimum distance from GAS hob: 650 mm
Minimum distance from ELECTRIC hob: 500 mm
Vent outlet: 150 mm
Non return valve: Yes

Performance / Energy Label

???Class_Arrows_A+++D_A???
Energy efficicency class ( EEC): A
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): B
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 48 kWh/a
Fluid Dynamic Efficiency (FDE): 30.3
Lighting Efficiency (LE): 42.6 lux/W
Grease Filtering Efficiency (GFE): 87.2 %
Air flow at minumum speed (Qmin): 254 m³/h
Air flow at maximum speed (Qmax): 603 m³/h
Air flow at boost speed (Qboost): 657 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 69 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 70 dB(A)
Power consumption in stand-by mode (Ps): 0.49 W
Time increase factor (F): 0.9
Energy Efficiency Index: 51.8
Measured air flow rate at best efficiency point (Qbep): 329 m³/h
Measured air pressure at best efficiency point (Pbep): 448 Pa
Measured electric power input at best efficiency point (Wbep): 135 W
Nominal Power consumption of the light system (WL): 5 W
Average illumination of the light on the cooking surface (Emiddle): 196 lux
Sound power level at highest setting (Lwa): 69 dB(A)

Electrical Connection

Electrical connection rating: 280 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm

Speed 1

Extraction rate IEC 61591: 254 m³/h
Noise level IEC 60704-2-13: 48 dB(A)
Power: 165 W

Speed 2

Extraction rate IEC 61591: 442 m³/h
Noise level IEC 60704-2-13: 61 dB(A)
Power: 201 W

Speed 3

Extraction rate IEC 61591: 603 m³/h
Noise level IEC 60704-2-13: 68 dB(A)
Power: 214 W

Intensive speed

Extraction rate (IEC 61591): 657 m³/h
Noise level IEC 60704-2-13: 70 dB(A)
Power: 213 W

Logistic Information

Dimensions of the product (mm): 361x712x290
Width: 712 mm
Depth (mm): 290 mm
Product Height (mm): 361 mm
Net weight (kg): 8.750 kg
Gross weight (kg): 11.910 kg
Packed width: 880 mm
Packaged depth: 470 mm
Height (mm) packed: 420 mm
Dimensions of the packed product (mm): 420X880X470
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 3.800 kg
Packaging composition - polystyrene (kg): 0.000 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.420 kg
