Kitchen sink Ultra-low profile built-in Universale Aesthetic

  • Features
  • Accessories
  • Download

Type

Thanks to the double tap hole, most of our sinks are easily reversible, giving you the flexibility to make any type of kitchen composition.
Product Family: Sink
Type: Welded sink
Sink material: Stainless steel
Sink dimensions: 86 cm
No. of bowls: 1
Drainer: Reversible
EAN code: 8017709220990

Aesthetics

Ultra-low profile: Installation of product with flat edge - height of 1 mm.
Colour: Stainless steel
Finishing: Brushed
Aesthetic: Universale
Series: Alba
Type of steel: AISI304
Tap hole / precut tap hole: 2 Tapholes
Building in type: Ultra-low profile

Technical Features

Cupboard width required for sink installation
Width (mm): 860 mm
Frame depth (mm): 16
Undermount cutout radius: 15 mm
Frame thickness: 0.7 mm
Height from kitchen top: 6 mm
Cutout dimension topmount (mm): 840 x 480 mm
Tap hole: 1
Tap hole diameter: 35 mm
Popup command: Yes, single
Popup command type: Round
Gasket type: Sealing paste
Drainer inclination: 2 °
No. of clips: 8
Type of clips: Standard
Base unit size: 45 cm

LH Bowl

Sink depth - depending on the model, the depth can be from13 to 24,5
Bowl type LH: Traditional
Bowl dimensions LH, WxDxA (mm): 340 x 400 x 210 mm
Bowl thickness LH (mm): 0.7 mm
LH Bowl depth (mm): 210 mm
Radius corner left bowl: 80 mm

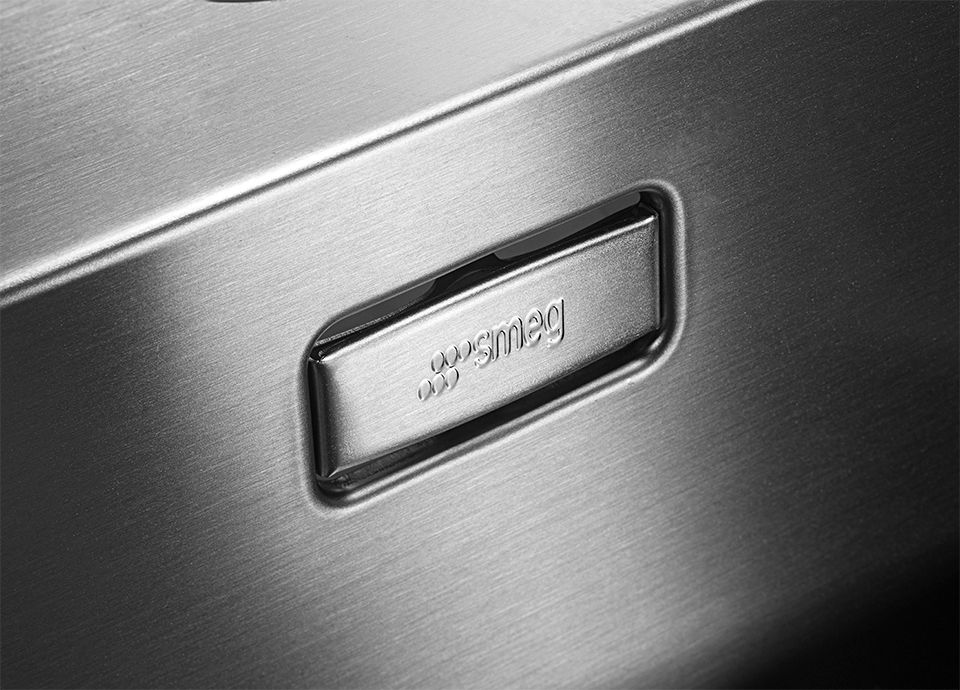

Overflow LH bowl: Yes, traditional
Strainer position LH bowl: Wall position
Strainer dimension LH bowl: 3.5"

Logistic Information

Dimensions of the product (mm): 228x860x500 mm
Net weight (kg): 4.860 kg
Gross weight (kg): 7.080 kg
Depth (mm): 500 mm
Product Height (mm): 228 mm
Packed width: 990 mm
Packaged depth: 610 mm
Height (mm) packed: 280 mm
Dimensions of the packed product (mm): 280X990X610 mm
Type of packaging: Cardboard+supports
Packaging composition - paper & cardboard (kg): 1.835 kg
Packaging composition - polystyrene (kg): 0.000 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.190 kg
