Kitchen sink Ultra-low profile built-in Universale Aesthetic

High quality AISI 304 stainless steel sink for the best performance in resistance and durability, ensuring a hygienic and safe kitchen environment. The ultra-low profile installation, up to 4 mm, allows a smooth transition between the sink and worktop, creating a visually more harmonious surface and giving a touch of refinement to the kitchen..
  • Possibility to install the waste disposal KITFD100 to easily dispose of organic waste, saving time and effor - Waste Kit
  • The drawer allows dishes, cutlery and kitchen utensils to be placed directly on the sink after washing: excess water can drain into the sink, allowing for natural drying
  • Two bowls for greater versatility and dual functionality
  • Highlights
  • Features
  • Accessories
  • Download

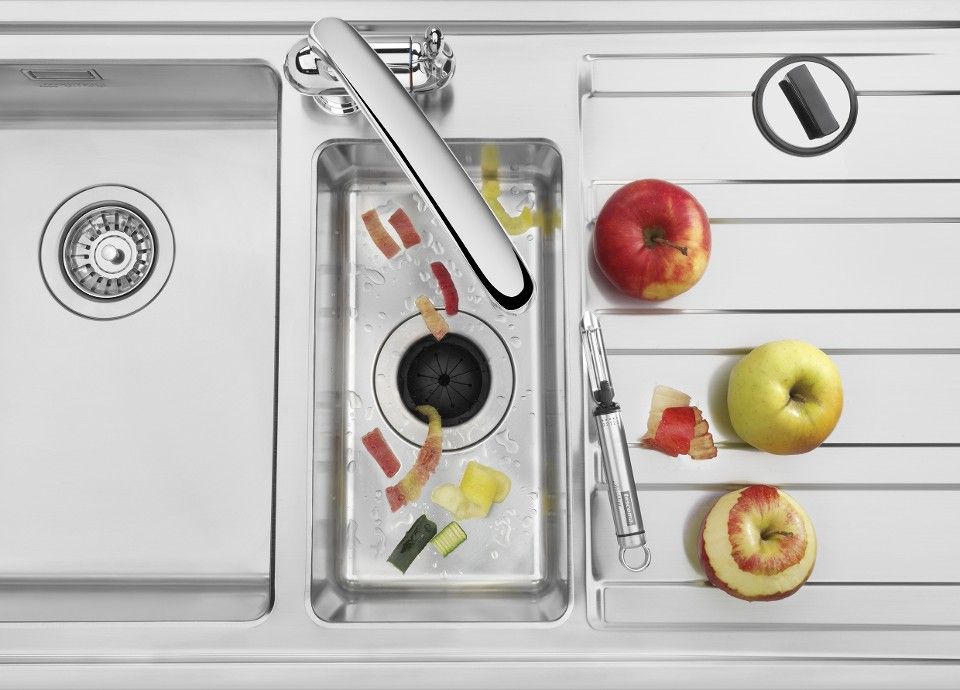

Food waste disposal

Compatible with all Smeg models, the waste disposal allows food scraps to be shredded and discharged through the drain, without affecting the hydraulic system, quickly, quietly and efficiently.

The best of stainless steel

The AISI 304 stainless steel sink ensures maximum durability, resistance to scratches, impacts, and corrosion. Antibacterial surface, easy to clean, and ideal for intensive use, merging hygiene with timeless design.

Aesthetics

Ultra-low profile: Installation of product with flat edge - height of 1 mm.
Colour: Stainless steel
Finishing: Brushed
Aesthetic: Universale
Series: Aurora
Type of steel: AISI304
Tap hole / precut tap hole: No Taphole
Building in type: Ultra-low profile

Type

Thanks to the double tap hole, most of our sinks are easily reversible, giving you the flexibility to make any type of kitchen composition.
Product Family: Sink
Type: Welded sink
Sink material: Stainless steel
Sink dimensions: 116 cm
No. of bowls: 2
Drainer: Reversible
EAN code: 8017709342302

Technical Features

Cupboard width required for sink installation
Width (mm): 1160 mm
Frame depth (mm): 15
Frame thickness: 0.6 mm
Height from kitchen top: 6 mm
Cutout dimension topmount (mm): 1140 x 480 mm
Possibility to install waste disposal: Yes
Dividing wall width: 30 mm
Gasket type: Sealing paste
Drainer inclination: 2 °
No. of clips: 10
Type of clips: Standard
Base unit size: 80 cm

RH Bowl

Sink depth - depending on the model, the depth can be from13 to 24,5
Bowl type RH: Traditional
Bowl dimensions, WxDxH (mm): 340 x 400 x 180 mm
Bowl thickness (mm): 0.6 mm
Bowl depth (mm): 180 mm
Radius corner right bowl (mm): 80 mm
Overflow: Yes, traditional
Strainer position: Side bowl
Strainer dimension: 3.5"

LH Bowl

Sink depth - depending on the model, the depth can be from13 to 24,5
Bowl type LH: Traditional
Bowl dimensions LH, WxDxA (mm): 340 x 400 x 180 mm
Bowl thickness LH (mm): 0.6 mm
LH Bowl depth (mm): 180 mm
Radius corner left bowl: 80 mm
Strainer position LH bowl: Side bowl
Strainer dimension LH bowl: 3.5"

Logistic Information

Dimensions of the product (mm): 195x1160x500 mm
Net weight (kg): 6.060 kg
Gross weight (kg): 8.560 kg
Depth (mm): 500 mm
Product Height (mm): 195 mm
Packed width: 1240 mm
Packaged depth: 610 mm
Height (mm) packed: 280 mm
Dimensions of the packed product (mm): 280X1240X610 mm
Type of packaging: Cardboard+supports
Packaging composition - paper & cardboard (kg): 2.300 kg
Packaging composition - polystyrene (kg): 0.200 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.030 kg

Accessories included

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket
