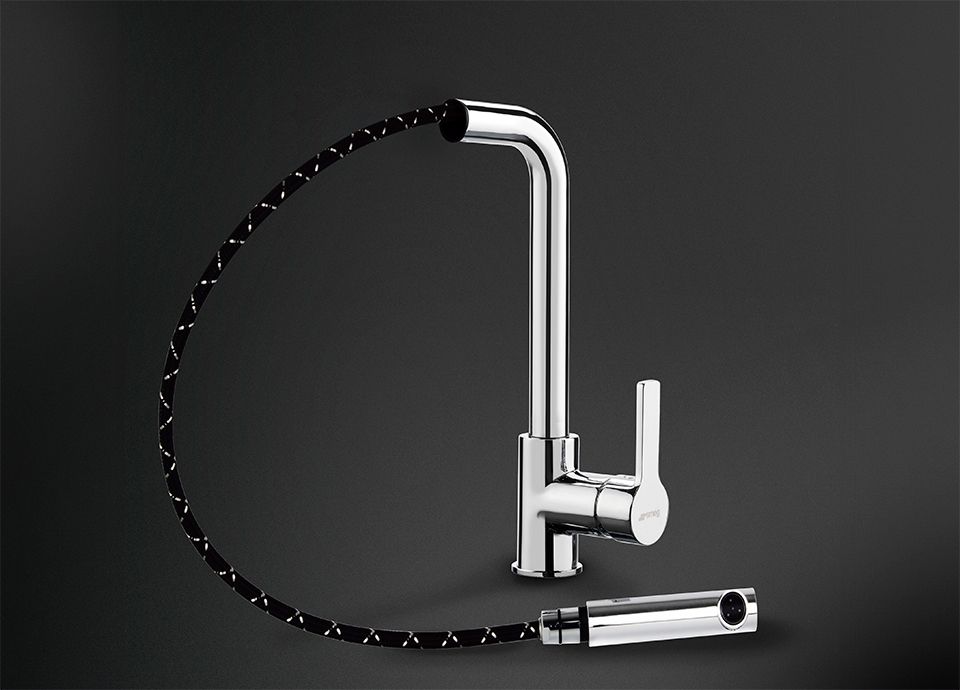

Single lever kitchen tap MD10AV3 Smeg

Single lever kitchen tap Universale Aesthetic MD10AV3

Product family
Taps
Colour
Oats
  • Features
  • Download

Type

Swivel spout rotation 100°
Product family: Taps
Material: Brass
Swivelling spout: Yes
Swivelling spout rotation: 100 °
EAN code: 8017709311698

Aesthetics

The extractable handshower allows to increase the range of action of the tap and it is extremely versatile, practical and comfortable. Double jet handshower. It is possible to simply switch between a standard stream mode and a spray mode.
Aesthetics: Universale
Colour: Oats
Tap type: Single lever
Handshower: Extractable
Spout type: Straight spout
Jet type: Double jets
Flexible hoses number: 2
Aerator: Yes

Technical Features

Non-return valve: Yes
Flexible hoses lenght: 450 mm
Flexible hoses connection: 3/8 "
Ceramic disc cartridge type: 40 Ø
Maximum pressure: 5 bar
Minimum pressure: 0,5 bar
Optimal pressure: 3 bar
Tap hole diameter: 35 mm

Logistic Information

Product height (mm): 192 mm
Net weight (kg): 1.543 kg
Gross weight (kg): 1.750 kg
