Induction Hob 60 cm Linea Aesthetic SIM3644D

Product Family
Hob
Aesthetic
Linea
Type
Induction
Dimensions
60 cm
Colour
Black
Built-in type
Ultra-low profile or Fully Flushed
  • Highlights
  • Features
  • Accessories
  • Download

DESIGN

The 80 cm induction hob accommodates six flexible cooking zones, which can join together for a total coverage of the hob ensuring maximum flexibility of use, and can be installed in a standard 80 cm kitchen module.

ECLIPSE GLASS

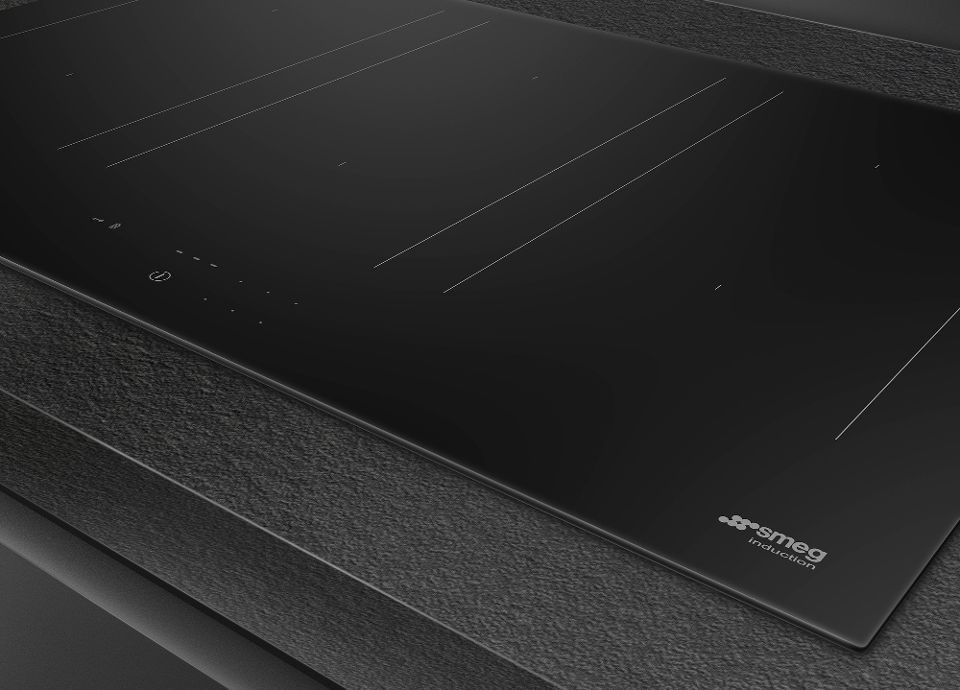

The deep black ceramic glass surface, called Eclipse, makes the top smooth and shiny. The display is equipped with fully retractable controls and premium white LEDs that give a touch of elegance to the kitchen.

MULTIZONE

The MultiZone function makes the cooking surface flexible and a gesture will be enough to connect two zones into a single larger one to use even the largest pots.

AUTO POT DETECTION

The Auto-pot detection function is designed to automatically recognize the position of pots with a minimum diameter of 9 cm, saving the user from having to activate the correct area.

AUTOVENT 2.0

Thanks to the AutoVent 2.0 system, it is possible to connect the hood to the hob so that the correct extraction is activated automatically based on the power of the hob or manually, directly from the hob.

ENERGY EFFICIENCY

The presence of innovative technologies also concerns energy saving. The induction hob is equipped with the Eco-Logic Advance system which allows you to moderate its power from 11.1 kW to just 2.4 kW to meet every need.

TIMER FUNCTION

The hob allows you to program the switching off of one or more cooking zones after a set time, alerting the user by means of an acoustic signal.

GRILL FUNCTION

It is possible to combine two cooking zones and use the special grill and teppanyaki accessories, which in just two minutes reach the ideal temperature for cooking meat and vegetables.

Type

Induction: The work of these hobs is based on the principle of electromagnetic induction. The heat is generated directly in the bottom of the pan during its contact with the hob.
Product Family: Hob
Dimensions: 60 cm
Type: Induction
Built-in type: Ultra-low profile or Fully Flushed
Power supply: Electric
EAN code: 8017709305550

Aesthetics

Evolution Slider totally Back-lighted ghost effect The slider control panel allows you to adjust the power simply by passing your finger across the touch
device. Darkness becomes light
Colour: Black
Finishing: Glass
Aesthetic: Linea
Material: Glass
Glass type: ceramic Eclipse
Type of control setting: EVO Slider
Control knob position: Front
Slider: Yes
LED colours: White
Glass edge: Straight edge
Serigraphy colour: Grey

Programme / Functions

Connection between hob and hood Power booster: option allows the zone to work at full power when very intense cooking is necessary.
Total no. of cook zones: 4
No. of induction cook zones: 4
Time-setting options: Spegnimento automatico
No. of cooking zones with booster: 4
No. of Flexible zones: 2
Main on/off switch: Yes
Power levels: 9
Auto-vent 2.0: Yes

Options

Grill function Multizone: allows several pans to be used at once, large or small, offering freedom of placement and greater flexibility Quick selection, with one touch cooking begins at the highest level, then automatically reduces after time. Ideal for dishes that require quick boiling and then continued cooking without constant control (eg beef broth). CUT_OUT_STANDARD_72dpi Timer: All ceramic hobs have a timer which automatically ends cooking after a preset time. Time elapsed: shows how long the cooking zone has been in use. Quick Start function: the chosen temperature is reached faster. The heating element works at maximum power until the right temperature is reached. Child lock: some models are fitted with a device to lock the programme/cycle so it cannot be accidentally changed. TWIN_ZONE_72dpi This function allows you to keep cooked food warm without burner it Possibility to set the maximum power absorbion of the hob All cooking zones can be reduced to the minimum power level, so the hob can be left unattended for a short period without
food overcooking or burning. Then just press again this function, the previously set power levels can be reactivated.
Worktop Cut-Out: 478-482x555-560 mm
Multizone Option: Yes
Flexible Zone Type: MultiZone
End cooking timer: 4
Pause option: Yes
Minute minder: 1
End of cooking alarm: Yes
Residual time indicator: Yes
Limited Power Consumption Mode: Si Advance
Limited Power Consumption Mode in W: 2400 a 7400 - step 100 W
Showroom Demo Option: Yes
Grill function: Yes
Control Lock / Child Safety: Yes
Keep warm automatic function: Yes
Bridge option: Yes
Quick start: Yes
Rapid level selection: Yes

Cooking zones

1st zone position: Rear-left
2nd zone position: Front-left
3rd zone position: Rear-right
4th zone position: Front-right
1st zone type: Induction - Multizone
2nd zone type: Induction - Multizone
3rd zone type: Induction - Multizone
4th zone tipe: Induction - Multizone
1st zone dimensions: 21.8x18.0 cm
2nd zone dimensions: 21.8x18.0 cm
3rd zone dimensions: 21.8x18.0 cm
4th zone dimensions: 21.8x18.0 cm
Left Multizone dimension: 38.5x23.0 cm
Right Multizone dimension: 38.5x23.0 cm
1st zone power: 2.10 kW
2nd zone power: 2.10 kW
3rd zone power: 2.10 kW
4th zone power: 2.10 kW
Power double booster 1° zone: 3.00 kW
Power double booster 2° zone: 3.00 kW
Power double booster 3° zone: 3.00 kW
1st zone booster power: 2.50 kW
Power double booster 4° zone: 3.00 kW
2nd zone booster power: 2.50 kW
3rd zone booster power: 2.50 kW
4th zone booster power: 2.50 kW
Booster power left Multizone: 3.70 kW
Booster power right Multizone: 3.70 kW

Technical Features

Overheat protection: The safety system that automatically turns off the hob in case of overheating of the control unit. Overfill protection: The special overfill protection shuts down the stove in the presence of overflow of liquids. Permanent auto pot detection Indication of residual heat: After the glass ceramic hob is switched off the residual heat indicator shows which of the heating zones still remains hot. When the temperature drops below 60 ° C, the indicator goes out. Min diameter pot detection of 9 cm
Automatic setting according to pan dimension: Yes
Permanent Automatic Pot Detection with indication of the relative control: Yes
pan detection: Yes, min 9 cm
Automatic switch off when overheat: Yes
Automatic switch off when overflow: Yes
Residual heat indicator: Yes
Protection against accidental start up: Yes

Performance / Energy Label

Hob energy consumption: 190 Wh/Kg
1st zone energy consumption: 189 Wh/Kg
2nd zone energy consumption: 191 Wh/Kg
Energy consumption zone 3: 191 Wh/Kg
Energy consumption zone 4: 189 Wh/Kg

Electrical Connection

Electrical connection rating (W): 7400 W
Current: 33 A
Voltage (V): 220-240 V
Voltage 2 (V): 380-415 V
Frequency (Hz): 50/60 Hz
Additional connection modalities: Yes, Double and Three Phase
Type of electric cable installed: Yes, Single phase
Power supply cable length: 120 cm

Logistic Information

Dimensions of the product (mm): 53x600x510
Depth: 510 mm
Width: 600 mm
Product Height: 53 mm
Net weight (kg): 10.200 kg
Gross weight (kg): 11.200 kg
Packed width: 700 mm
Packaged depth: 620 mm
Height (mm) packed: 110 mm
Dimensions of the packed product (mm): 110X700X620
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 0.469 kg
Packaging composition - polystyrene (kg): 0.528 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.029 kg
