Kitchen sink Flush fitted, Flat built-in Universale Aesthetic

Dimensions

Compare

Product code: VR12S70RS

High quality AISI 304 stainless steel sink for the best performance in resistance and durability, ensuring a hygienic and safe kitchen environment. The ultra-thin edge of the sink, only 1 mm, lies on the worktop creating a continuous and elegant surface and aiming at absolute aesthetic essentiality.

The sink is easily reversible, making it possible to create any type of kitchen composition

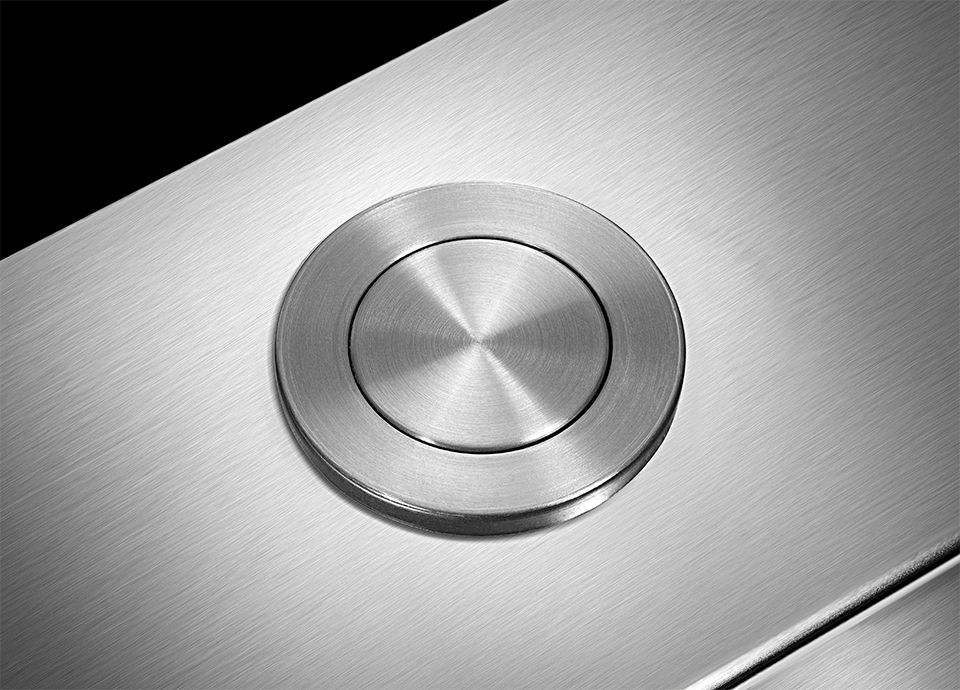

Attractive and modern pop-up command with push control for greater convenience in the kitchen - Pop-up command push
The pop-up command allows the sink drain to be opened and closed remotly with a simple gesture and without the need to touch the plug directly, increasing convenience and hygiene in the kitchen
Integrated flush waste kit to maximise the efficiency of your kitchen - Integrated flush waste kit
Possibility of having the tap hole for direct installation of the tap on the sink, for a larger and neater surface area
A single bowl for greater adaptability, capacity and space optimisation

Features
Accessories
Download

Aesthetics

Flush-fitted installation: Models of sinks/hobs which are integrated flush with the tabletop of a kitchen unit.

Flat: Installation of productwith flat edge.

Colour: Stainless steel

Finishing: Brushed

Aesthetic: Universale

Series: Mira

Type of steel: AISI304

Tap hole / precut tap hole: 2 Tapholes

Building in type: Flush fitted, Flat

Type

Product Family: Sink

Type: Welded bowl

Sink material: Stainless steel

Sink dimensions: 70 cm

No. of bowls: 1

EAN code: 8017709308162

Technical Features

Cupboard width required for sink installation

Width (mm): 750 mm

Height from kitchen top: 1 mm

Cutout dimension topmount (mm): 735*495 mm

Tap hole: 2

Tap hole diameter: 35 mm

Popup command: Yes, single

Popup command type: Push

No. of clips: 11

Type of clips: Standard

Base unit size: 80 cm

Bowl

Sink depth - depending on the model, the depth can be from13 to 24,5

Bowl type: Minimum radius

Bowl dimensions, WxDxH (mm): 700 x 400 x 200 mm

Bowl thickness (mm): 1 mm

Bowl depth (mm): 200 mm

Radius corner bowl: 12 mm

Overflow: Yes, flush fitted

Strainer position: Wall position

Strainer dimension: 3.5"

Logistic Information

Dimensions of the product (mm): 201x750x510 mm

Net weight (kg): 7.660 kg

Gross weight (kg): 10.250 kg

Depth (mm): 510 mm

Product Height (mm): 201 mm

Packed width: 802 mm

Packaged depth: 557 mm

Height (mm) packed: 261 mm

Dimensions of the packed product (mm): 261X802X557 mm

Type of packaging: Cardboard

Packaging composition - paper & cardboard (kg): 2.585 kg

Packaging composition - polystyrene (kg): 0.000 kg

Packaging composition - wood (kg): 0.000 kg

Packaging composition - plastic (kg): 0.020 kg

Accessories Included

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Automatic pop-up with push control

Integrated flush waste kit: Yes

Optional

CB28QU

Accessories, Type: Chopping board, Sinks

Technical drawing

Product sheet

Download

Brochure

Download

3D file

Download
