Cooker Portofino CPF92GMA

Product Family
Cooker
Cooker size
90x60 cm
Aesthetics
Portofino
Colour
Anthracite
Hob type
Gas
Main oven type
Thermo-ventilated
Type of second oven
Static
Energy efficiency class
A
Energy efficiency class, second cavity
A
???Class_Arrows_A+++D_A???
Find Resellers

You might also be interested in

5 Year extended warranty

This appliance qualifies for a comprehensive Smeg 5-year warranty assistance package covering all parts and labour. Buy with confidence and added peace of mind.

This offer is available on purchases made before 31st December 2024. To find out more and to redeem upon purchase, please click below.

Find out more
  • Highlights
  • Features
  • Accessories
  • Download
DOUBLE OVEN

DOUBLE OVEN

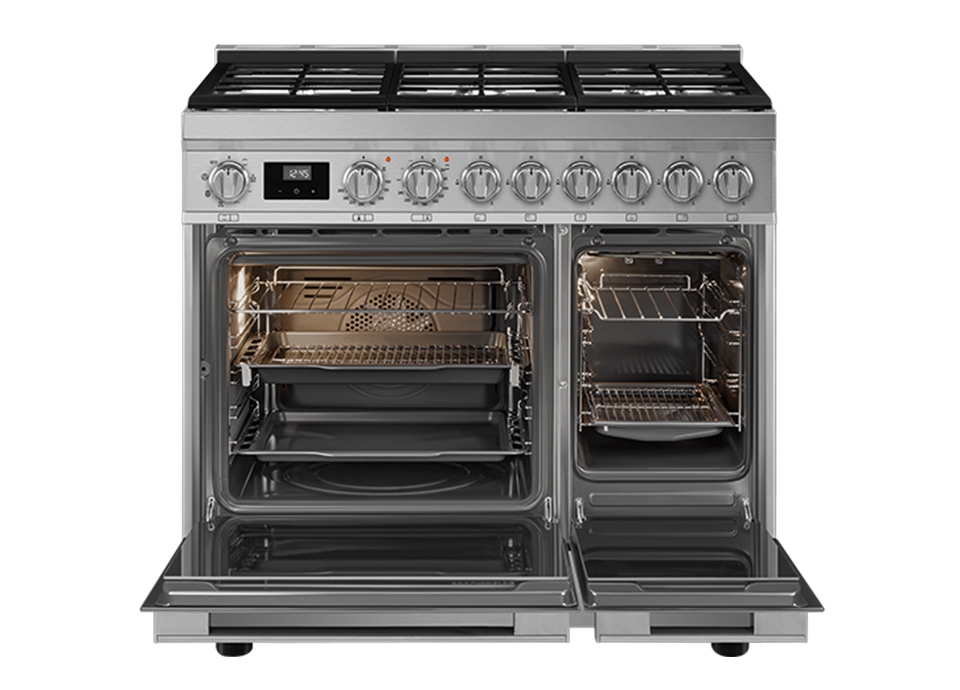

MAIN OVEN:
The generous 70 litre multifunction oven has 7 cooking functions including circulaire, 5 cooking levels, easy clean enamel interior and a number of accessories such as telescopic guides.

AUXILIARY OVEN:
The 35 litre secondary oven features static cooking and grill function, 4 cooking levels and an easy clean enamel interior.

There is also a handy storage drawer beneath the compartment for housing racks and trays when not in use.

GAS HOB

GAS HOB

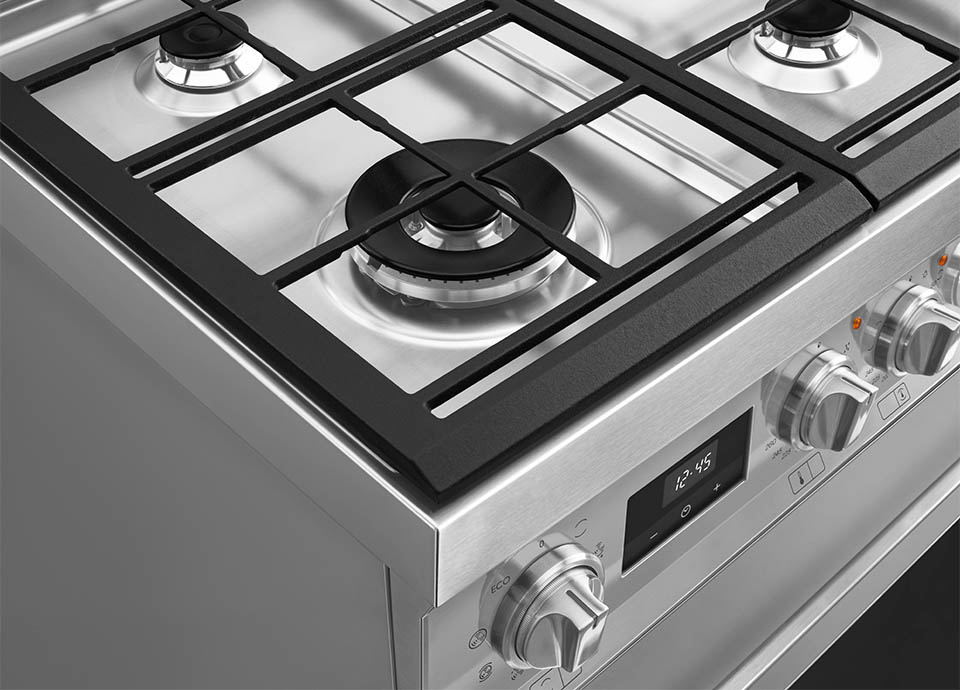

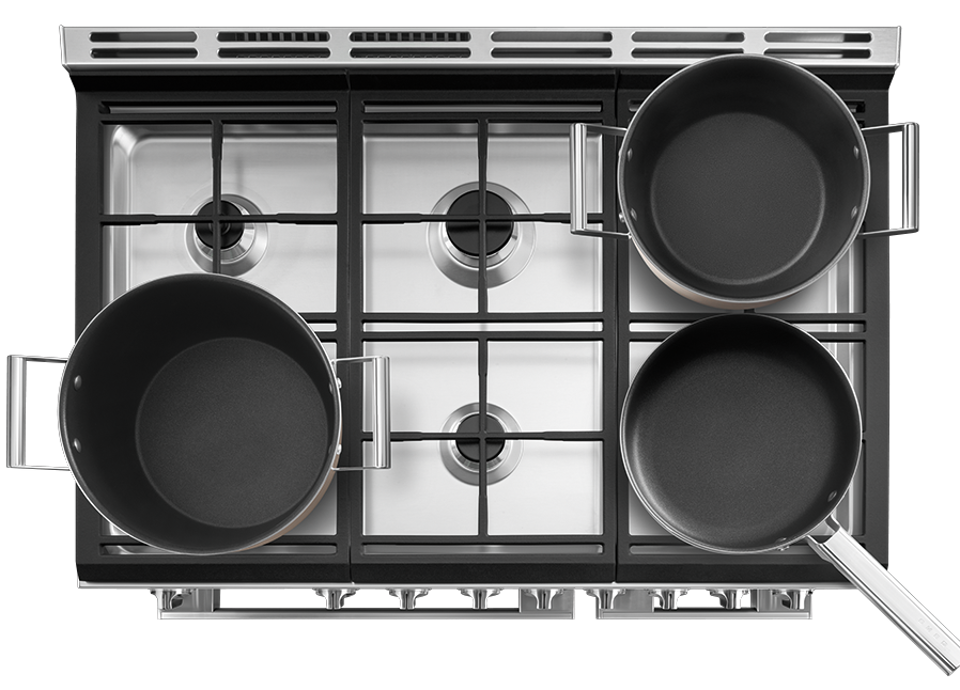

The gas hob features heavy-duty cast-iron pan stands and six burners, one of which is a powerful 4.2KW ultra-rapid burner, perfect for wok frying. Each burner has its own independent control ensuring maximum ease of use and professional results.

STURDY CONTROLS
STURDY CONTROLS
Scroll

STURDY CONTROLS

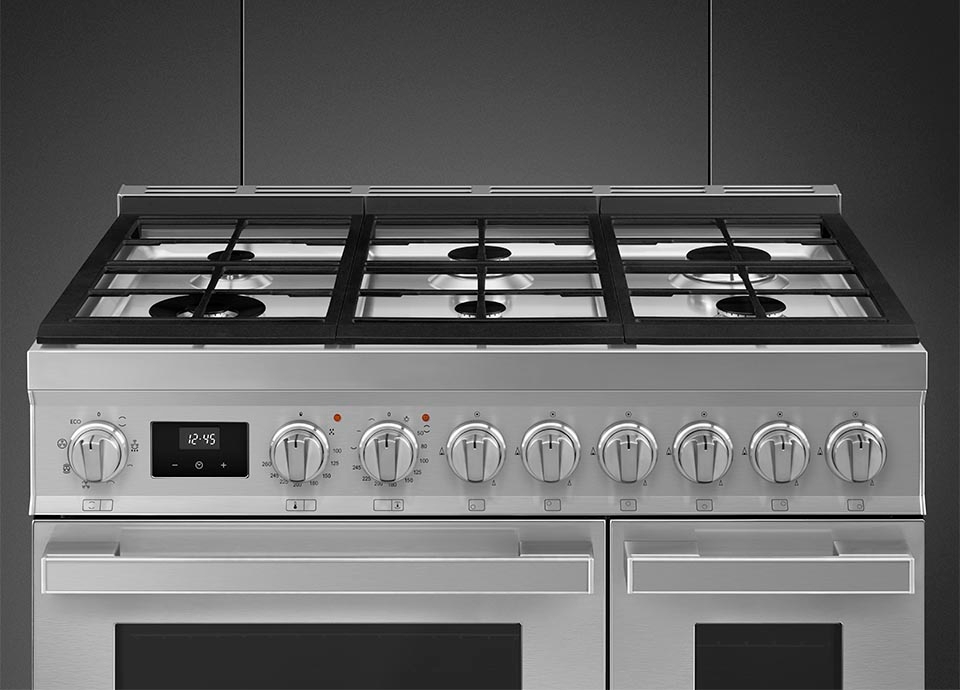

Featurung solid, chunky metal knobs - the Portofino's controls are robust and extremely ergonomic.

5 YEAR WARRANTY PROMOTION

5 YEAR WARRANTY PROMOTION

This appliance qualifies for a comprehensive Smeg 5-year warranty assistance package covering all parts and labour. Buy with confidence and added peace of mind.

This offer is available on purchases made before 30th June 2024. To find out more and to redeem upon purchase, please click below.

Find out more
CLOSED DOOR GRILLING
CLOSED DOOR GRILLING

Closed door grilling allows you to grill with the door closed, keeping cooking smells inside the oven and out of the kitchen to ensure a safe cooking environment and reduced energy consumption.

Vapor Clean Programme
Vapor Clean Programme

Smeg ovens offer a vapor clean programme designed to generate steam to help release burnt on food from the walls of the oven. Vapour cleaning is straightforward, simply put a little water & detergent into the hollow in the oven base and select the vapour setting

Easy clean enamel interior
Easy clean enamel interior

The enamel finish of the oven cavity has a special antacid lining which helps to reduce the amount of dirt adhering to the surface.

5 cooking levels
5 cooking levels

5 different cooking levels guarantee maximum flexibility, allowing you to cook different dishes at the same time. Ideal when you need to quickly  prepare more dishes or large quantities of food.

Type

Installation in column: Installation in column Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity.
Product Family: Cooker
Cooker size: 90x60 cm
Cooker configuration: Dual fuel
Hob type: Gas
Hob energy type: Gas
N. of ovens: 2
Main oven type: Thermo-ventilated
Type of second oven: Static
EAN code: 8017709300371
Installation positioning of the appliance: Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Cleaning system: Vapor Clean

Aesthetics

Heavy duty cast iron pan stands: for maximum stability and strength. Knobs control 4.3 inch display with LED technology, usability with knobs + 3 touch keys
Colour: Anthracite
Design: Flush fit
Aesthetics: Portofino
Command panel finish: Enamelled metal
Material: Stainless steel
Upstand: Yes
Hob colour: Stainless steel
Type of pan stands: Cast Iron
Type of control setting: Control knobs
Control knobs: Smeg Portofino
Controls colour: Stainless steel
No. of controls: 8
Display: Touch
Door: With frame
Glass type: Grey
Handle: Smeg Portofino
Handle Colour: Anthracite
Storage compartment: Door
Feet: Black

Programs / Functions

Other functions
  • Defrost by time: Manual defrost function. At the end of the set duration, the function stops. Defrost by time
Traditional cooking functions
  • Static: Traditional cooking suitable for the preparation of one dish at a time. The fan is not active and the heat comes from below and from above at the same time. Static cooking is slower and more delicate, ideal in order to get well cooked and dry dishes even inside. Ideal for cooking all types of roasts, fatty meats, bread, filled cakes. Static
  • Circulaire: it is the perfect function for cooking all types of dishes in a more delicate way. The heat comes from the back of the oven and is distributed quickly and evenly The fan is active. It is also ideal for cooking on multiple levels without mixing smells and flavors. Circulaire
  • Turbo: the heat comes from 3 directions: above, below and from the back of the oven The fan is active. It allows quick cooking, even on several shelves without mixing the aromas. Ideal for large volumes or foods that require intense cooking. Turbo (circulaire + bottom + upper + fan)
  • ECO: low energy consumption cooking: this function is particularly suitable for cooking on a single shelf with low energy consumption. It is recommended for all types of food except those that can generate a lot of moisture (for example vegetables). To achieve maximum energy savings and reduce time, it is recommended to put the food in the oven without preheating the cooking compartment ECO
  • Half grill: For rapid cooking and browning of foods. Best results can be obtained by using the top shelf for small items, the lower shelves for larger ones, such as chops or sausages. For half grill heat is generated only at the centre of the element, so is ideal for smaller quantities. Small grill
  • Grill: Very intense heat coming only from above from a double heating element. The fan is not active. Provides excellent grilling and gratinating results. Used at the end of cooking, it gives a uniform browning to dishes. Large grill
  • Fan grill: very intense heat coming only from above from a double heating element The fan is active. It allows the optimal grilling of thickest meats. Ideal for large cuts of meat. Fan grill (large)
  • Fan assisted base: the mix of fan and lower heating element alone allows to finish cooking foods already cooked on the surface but not internally more quickly. This system is recommended to finish cooking foods that are already well cooked on the surface, but not internally, which therefore require a moderate higher heat. Ideal for any type of food. Fan assisted base
Cleaning functions
  • Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity. Vapor Clean

Options Main Oven

Timer: Yes
End of cooking acoustic alarm: Yes
Minimum Temperature: 50 °C
Maximum temperature: 260 °C

Programs / Functions Auxiliary Oven

Cooking functions cavity 2: 4
Traditional cooking functions, cavity 2
  • Static: Traditional cooking suitable for the preparation of one dish at a time. The fan is not active and the heat comes from below and from above at the same time. Static cooking is slower and more delicate, ideal in order to get well cooked and dry dishes even inside. Ideal for cooking all types of roasts, fatty meats, bread, filled cakes. Static
  • Half grill: For rapid cooking and browning of foods. Best results can be obtained by using the top shelf for small items, the lower shelves for larger ones, such as chops or sausages. For half grill heat is generated only at the centre of the element, so is ideal for smaller quantities. Small grill
  • Base: the heat comes only from the bottom of the cavity. The fan is not active. Ideal for sweet and savory pies, cobblers and pizzas. Designed to complete cooking and make food more crunchy This symbol in gas ovens indicates the gas burner. Bottom

Options Auxiliary Oven

Minimum Temperature: 50 °C
Maximum temperature: 245 °C

Hob technical features

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
Total no. of cook zones: 6
1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Front centre
4th zone position: Rear centre
5th zone position: Front right
6th zone position: Rear right
1st zone type: Gas - 2UR (dual)
2nd zone type: Gas - AUX
3rd zone type: Gas - AUX
4th zone type: Gas - Semi Rapid
5th zone type: Gas - Semi Rapid
6th zone type: Gas - Rapid
1st zone power: 4.20 kW
2nd zone power: 1.00 kW
3rd zone power: 1.00 kW
4th zone power: 1.80 kW
5th zone power: 1.80 kW
6th zone power: 3.00 kW
Type of gas burners: Standard
Burner caps: Matt black enamelled
Automatic electronic ignition: Yes
Gas safety valves: Yes

Main Oven Technical Features

Electronic control: Allows you to maintain temperature inside the oven with the precision 2-3 ° C. This enables to cook meals that are very sensitive to temperature changes, such as cakes, souffles, puddings. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time. It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity. It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking The oven cavity has 5 different cooking levels. The inner door glass: can be removed with a few quick movements for cleaning. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity: 70 litres
Gross volume, 1st cavity: 79 l
Cavity material: Easy clean enamel
Shelf positions: 5
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Fan number: 1
Cooking time setting: Start and Stop
Door opening: Flap down
Light when oven door is open: Yes
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
Total no. of door glasses: 3
No.of thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Grill elememt: 1700 W
Large grill - Power: 2700 W
Lower heating element power: 1200 W
Upper heating element - Power: 1000 W
Circular heating element - Power: 2000 W
Temperature control: Electronic

Second Oven Technical Features

Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time. It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity. It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking The oven cavity has 4 different cooking levels. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. The capacity indicates the amount of usable space in the oven cavity in litres. Triple glazed doors: Number of glazed doors. Electronic control: Allows you to maintain temperature inside the oven with the precision 2-3 ° C. This enables to cook meals that are very sensitive to temperature changes, such as cakes, souffles, puddings.
Net volume of the second cavity: 35 litres
Cavity material: Easy clean enamel
Shelf positions: 4
Type of shelves: Metal racks
No. of lights: 1
Light type: Incandescent
Light power: 25 W
Fan number: 1
Door opening: Flap down
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
No. total door glasses: 3
No. thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Grill element - power: 1300 W
Large grill - Power: 1900 W
Lower heating element - power: 700 W
Upper heating element - Power: 600 W
Temperature control: Electro-mechanical

Performance / Energy Label

???Class_Arrows_A+++D_A???
Energy efficiency class: A
GAS - Energy consumption in fan-forced convection, first cavity: 2.88 MJ
Energy consumption forced air convection (kWh) first cavity: 0.80 KWh
GAS - Energy consumption conventional mode, first cavity: 3.92 MJ
Energy consumption conventional first cavity (kWh): 1.09 KWh

Performance /Energy Label - Second Cavity

???Class_Arrows_A+++D_A???
Energy efficiency class, second cavity: A
GAS - Energy consumption in conventional mode, second cavity: 2.66 MJ
GAS - Energy consumption in conventional mode, second cavity: 0.74 KWh

Electrical Connection

Max Power Draw: 5200 W
Current: 23 A
Voltage: 220-240 V
Voltage 2 (V): 380-415 V
Frequency: 50/60 Hz
Additional connection modalities: Yes, Double and Three Phase
Power supply cable length: 120 cm
Type of electric cable: Yes, Single phase

Gas Connection

Gas connection rating (W): 12600 W
Gas Type: G25/G25.3 Natural gas

Logistic Information

Dimensions of the product HxWxD (mm): 900x900x600 mm
Width (mm): 900 mm
Product Height (mm): 900 mm
Depth (mm): 600 mm
Dimensions of the packed product (mm): 860X960X670 mm
Gross weight (kg): 97.200 kg
Net weight (kg): 87.600 kg
Packed width: 960 mm
Packaged depth: 670 mm
Height (mm) packed: 860 mm
Maximum stackability: 5
Type of packaging: Shrinkwrap
Packaging composition - paper & cardboard (kg): 4.786 kg
Packaging composition - polystyrene (kg): 1.308 kg
Packaging composition - wood (kg): 2.660 kg
Packaging composition - plastic (kg): 0.880 kg

Accessories Included

Other gas nozzles included: G20 Natural gas, G30 LPG liquid gas

Accessories included for Main Oven & Hob

Rack with back and side stop: 1
Grill mesh: 1
20mm deep tray: 1
40mm deep tray: 1
Telescopic Guide rails, total Extraction: 1

Accessories included for Secondary Oven

Wide baking tray: 1
Rack with back and side stop: 1
Grill mesh: 1

Optional

KITH900CPF9
KITH900CPF9
Accessories, Type: Plinth Kit, Cookers
STONE
STONE
Accessories, Type: Gourmet cooking stone, Ovens, Cookers
GTT
GTT
Accessories, Type: Telescopic guides, Ovens, Cookers
GTP
GTP
Accessories, Type: Telescopic guides, Ovens, Cookers
BBQ
BBQ
Accessories, Type: Pan stands, Ovens, Cookers
AIRFRY
AIRFRY
Accessories, Type: Pan stands, Ovens, Cookers
PRTX
PRTX
Accessories, Type: Gourmet cooking stone, Ovens, Cookers
PALPZ
PALPZ
Accessories, Type: Pizza shovel, Ovens, Cookers
WOKGHU
WOKGHU
Accessories, Type: Wok support, Cookers, Hobs
KITC9X9-1
KITC9X9-1
Accessories, Type: Splashback, Cookers
