Hob Victoria SR975XGH

Product Family

Hob

Aesthetics

Victoria

Type

Gas

Dimensions

70/75 cm

Built-in

Traditional

Compare

Highlights
Features
Accessories
Download

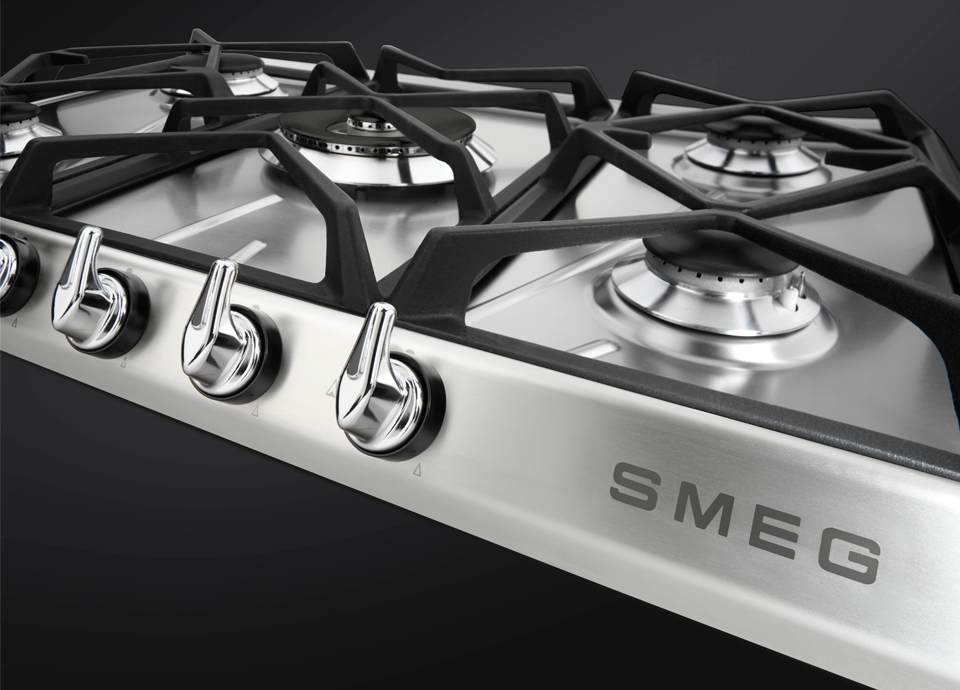

STURDY GAS BURNERS

STURDY GAS BURNERS

Victoria hobs are equipped with either 4 or 5 burners (model dependent) including an ultra rapid burner with 4kW power, and robust pan stands.

The hob's exclusive retro design makes it hugely eye catching, a real focal point in your home.

Heavy duty cast Iron Pan Stands

Heavy duty cast Iron Pan Stands

The majority of Smeg gas hobs are supplied with heavy duty cast iron stands, designed to be resistant to high temperatures. They are very robust and can be easily cleaned with detergent and wire wool to prevent deterioration over time.

HIGH QUALITY STAINLESS STEEL

A stylish and modern stainless steel material has been used which will complement any kitchen. It is very durable and long lasting.

ULTRA RAPID BURNERS

These powerful burners can offer up to 5.00kW power on some models and offer 3 different configurations: a triple flame burner or a dual flame burner with a single control, or a dual flame 3-way burner. Composed of an auxiliary and a rapid burner, its 2 controls allow both parts of the burner to work together or independently.

SAFETY VALVES

All Smeg gas hobs include safety valves as standard, the valves on the burner cut off the gas flow if the flame is accidentally exitinguished. In this event, the gas feeder valve shuts off immediately, regardless of the position of the control.

Type

Standard installation: Traditional installation in tabletop, suitable for any kitchen sets

Product Family: Hob

Dimensions: 70/75 cm

Type: Gas

Built-in: Traditional

Power supply: Gas

EAN code: 8017709200145

Aesthetics

Heavy duty cast iron pan stands: for maximum stability and strength.

Colour: Stainless steel

Finishing: Brushed

Aesthetics: Victoria

Type of steel: Brushed

Material: Stainless Steel

Controls colour: Chrome

Type of control setting: Control knobs

Control knobs position: Front

No. of controls: 6

Pan stands: Cast iron

Serigraphy colour: Black

Programs / Functions

Total no. of cook zones: 5

No. of gas cook zones: 5

Options

CUT_OUT_STANDARD_72dpi

Standard cut out: 478-482x555-560 mm

Cooking zones

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.

1st zone position: Front left

2nd zone position: Rear left

3rd zone position: Central

4th zone position: Rear right

5th zone position: Front right

1st zone type: Gas - AUX

2nd zone type: Gas - Rapid

3rd zone type: Gas - 2UR (dual)

4th zone tipe: Gas - Semi Rapid

5th zone type: Gas - Semi Rapid

1st zone power: 1.10 kW

2nd zone power: 2.60 kW

3rd zone power: 5.00 kW

4th zone power: 1.70 kW

5th zone power: 1.70 kW

Technical Features

Gas Type: G20 Natural gas

Gas safety valves: Yes

Automatic Ignition: Yes

Electrical Connection

Gas connection rating (W): 11900 W

Nominal power (W): 1 W

Voltage (V): 220-240 V

Frequency (Hz): 50/60 Hz

Power supply cable length: 120 cm

Logistic Information

Dimensions of the product HxWxD (mm): 32x685x500

Depth (mm): 500 mm

Width (mm): 685 mm

Product Height (mm): 32 mm

Net weight (kg): 14.100 kg

Gross weight (kg): 16.000 kg

Packed width: 740 mm

Packaged depth: 555 mm

Height (mm) packed: 145 mm

Dimensions of the packed product (mm): 145X740X555

Maximum stackability: 15

Type of packaging: Shrinkwrap

Packaging composition - paper & cardboard (kg): 0.000 kg

Packaging composition - polystyrene (kg): 0.452 kg

Packaging composition - wood (kg): 0.000 kg

Packaging composition - plastic (kg): 0.367 kg

Accessories Included

Other gas connections provided: Conical

Technical drawing

Instruction manual

User manual (EN) (pdf)

Warranty

Warranty certificate (EN) (pdf)

Product information sheet

Download (EU)

Download (UK)

Product sheet

Download

Brochure

Download

3D file

Download

For availability in specific countries please contact your local agent
