Oven Cucina DOSF400S

Product Family
Oven
Aesthetics
Cucina
Category
Double in column
Cooking Method
Thermo-ventilated
Cooking Method Secondary Oven
Static
Colour
Silver
Energy efficiency class
A
Energy efficiency class, second cavity
B
???Class_Arrows_A+++D_A???
Find Resellers
Whilst stocks last
  • Highlights
  • Features
  • Accessories
  • Download

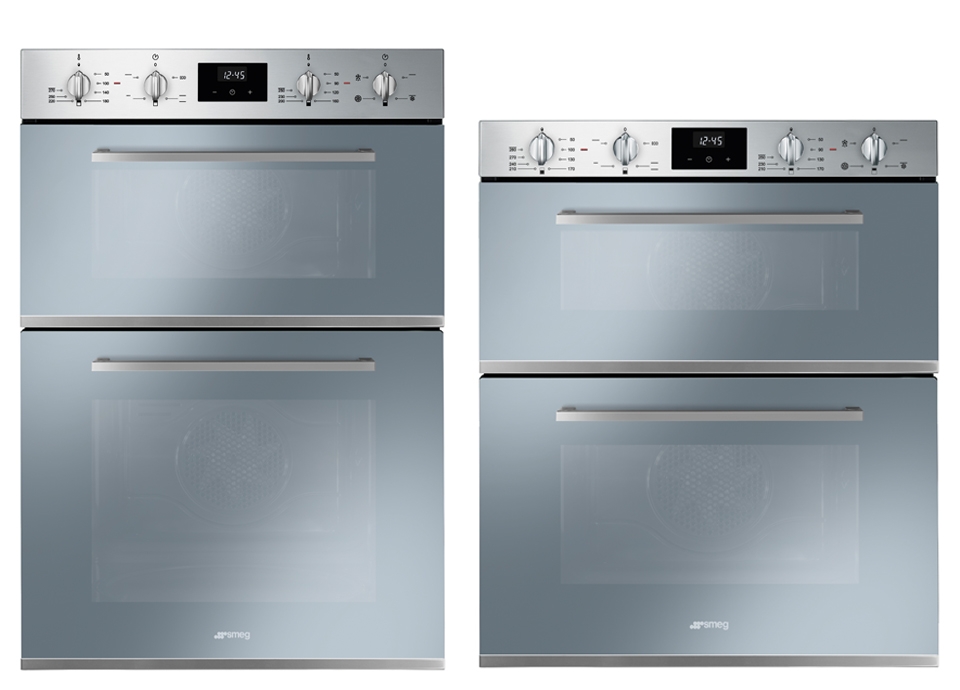

CUCINA DOUBLE OVENS

CUCINA DOUBLE OVENS

With two cavities to cook in, double ovens offer plenty of choice, flexibility and oven space ideal for family cooking or if you need the extra space for entertaining guests.

The separate grill compartment is great for quick cooking or browning foods such as pork chops and sausages.

The Cucina aesthetic offers in column and under counter double oven options.

CLOSED DOOR GRILLING
CLOSED DOOR GRILLING

Closed door grilling allows you to grill with the door closed, keeping cooking smells inside the oven and out of the kitchen to ensure a safe cooking environment and reduced energy consumption.

Easy clean enamel interior
Easy clean enamel interior

The enamel finish of the oven cavity has a special antacid lining which helps to reduce the amount of dirt adhering to the surface.

5 cooking levels
5 cooking levels

5 different cooking levels guarantee maximum flexibility, allowing you to cook different dishes at the same time. Ideal when you need to quickly  prepare more dishes or large quantities of food.

Type

Electric
Product Family: Oven
Category: Double in column
Cooking Method Secondary Oven: Static
Cooking Method: Thermo-ventilated
Power supply: Electric
EAN code: 8017709272661

Aesthetics

Colour: Silver
Aesthetics: Cucina
Control knobs: Cucina restyling
Controls colour: Steel effect
Component finish: Stainless steel
Material: Stainless steel
Type of steel: Brushed
Glass Type: Stopsol
Door: Full glass
Handle: Squared Selection
Handle Colour: Steel effect

Programs / Functions

No. of cooking functions: 4
Traditional cooking functions
  • Circulaire: it is the perfect function for cooking all types of dishes in a more delicate way. The heat comes from the back of the oven and is distributed quickly and evenly The fan is active. It is also ideal for cooking on multiple levels without mixing smells and flavors. Ciculaire
  • ECO: low energy consumption cooking: this function is particularly suitable for cooking on a single shelf with low energy consumption. It is recommended for all types of food except those that can generate a lot of moisture (for example vegetables). To achieve maximum energy savings and reduce time, it is recommended to put the food in the oven without preheating the cooking compartment ECO
  • Grill: Very intense heat coming only from above from a double heating element. The fan is not active. Provides excellent grilling and gratinating results. Used at the end of cooking, it gives a uniform browning to dishes. Large grill
  • Fan grill: very intense heat coming only from above from a double heating element The fan is active. It allows the optimal grilling of thickest meats. Ideal for large cuts of meat. Fan grill (large)

Controls

Control setting: Knobs & touch buttons
No. of controls: 4

Programs / Functions Auxiliary Oven

No. of cooking functions secondary oven: 4
Traditional cooking functions, cavity 2
  • Static: Traditional cooking suitable for the preparation of one dish at a time. The fan is not active and the heat comes from below and from above at the same time. Static cooking is slower and more delicate, ideal in order to get well cooked and dry dishes even inside. Ideal for cooking all types of roasts, fatty meats, bread, filled cakes. Static
  • ECO: low energy consumption cooking: this function is particularly suitable for cooking on a single shelf with low energy consumption. It is recommended for all types of food except those that can generate a lot of moisture (for example vegetables). To achieve maximum energy savings and reduce time, it is recommended to put the food in the oven without preheating the cooking compartment ECO
  • Half grill: For rapid cooking and browning of foods. Best results can be obtained by using the top shelf for small items, the lower shelves for larger ones, such as chops or sausages. For half grill heat is generated only at the centre of the element, so is ideal for smaller quantities. Small grill
  • Grill: Very intense heat coming only from above from a double heating element. The fan is not active. Provides excellent grilling and gratinating results. Used at the end of cooking, it gives a uniform browning to dishes. Large grill

Options

Rapid preheating: cooking is preceded by the preheating phase which allows the cooking compartment to reach the set temperature. This option reduces the time by up to 50%.
Time-setting options: Delay start and automatic end cooking
Minute minder: Yes
Timer: 1
Rapid pre-heating: Yes

Technical Features

Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time. It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity. It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking The oven cavity has 5 different cooking levels. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. The inner door glass: can be removed with a few quick movements for cleaning. 4.3 inch display with LED technology, usability with knobs + 3 touch keys Side lights: Two opposing side lights increase visibility inside the oven. Triple glazed doors: Number of glazed doors. Air cooling system: to ensure a safe surface temperatures.
Display name: DigiScreen
Display technology: LED
Temperature control: Electro-mechanical
Minimum Temperature: 50 °C
Maximum temperature: 250 °C
Cavity material: Easy clean enamel
Shelf positions: 5
No. of lights: 1
User-replaceable light: Yes
Light type: Halogen
Light power: 40 W
Door opening type: Standard opening
Door: Temperate door
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
Total no. of door glasses: 3
Cooling system: Tangential
Heating suspended when door is opened: Yes
Grill element - power: 1800 W
Circular heating element - Power: 2700 W

Second Oven Technical Features

The oven cavity has 2 different cooking levels. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step. The inner door glass: can be removed with a few quick movements for cleaning. Double glazed doors: Number of glazed doors. Side lights: Two opposing side lights increase visibility inside the oven.
No. of lights: 1
Maximum temperature: 270 °C
Light type: Halogen
Shelf positions: 2
Light power: 40 W
Minimum Temperature: 50 °C
Tiliting grill: Yes
Time-setting options: No delay options
Removable door: Yes
Removable inner door: Yes
No. of total door glasses: 2
No. of thermoreflecting door glasses: 1
Bottom heating element power: 1200 W
Upper heating element - Power: 1000 W
Grill element - power: 1700 W
Large grill - Power: 2700 W

Performance / Energy Label

???Class_Arrows_A+++D_A??? The capacity indicates the amount of usable space in the oven cavity in litres.
Energy efficiency class: A
Net volume of the cavity: 70 litres
Energy consumption in forced air convection: 2.88 MJ
Energy consumption per cycle in fan-forced convection: 0.80 KWh

Performance /Energy Label - Second Cavity

The capacity indicates the amount of usable space in the oven cavity in litres. B: Product energy rating, measured from A+++ to D / G depending on the product family.
Energy efficiency class, second cavity: B
Consumo di energia per ciclo in convezione naturale, seconda cavità: 3.02 MJ
Energy consumption per cycle in conventional mode, second cavity: 0.84 KWh
Net volume of the second cavity: 35 litres

Electrical Connection

Voltage: 220-240 V
Nominal power (W): 4800 W
Current: 21 A
Frequency (Hz): 50/60 Hz

Logistic Information

Dimensions of the product HxWxD (mm): 884x597x570
Net weight (kg): 51.200 kg
Gross weight (kg): 55.400 kg
Packed width: 620 mm
Packaged depth: 670 mm
Height (mm) packed: 950 mm
Dimensions of the packed product (mm): 950X620X670
Maximum stackability: 4
Type of packaging: Shrinkwrap
Packaging composition - paper & cardboard (kg): 1.121 kg
Packaging composition - polystyrene (kg): 1.914 kg
Packaging composition - wood (kg): 0.670 kg
Packaging composition - plastic (kg): 0.509 kg

Accessories Included

Chrome shelf with back and side stop: 2
Grill mesh: 2
Extra deep enamelled tray (40mm): 2

Accessories included for Secondary Oven

Full glass inner door: Yes
