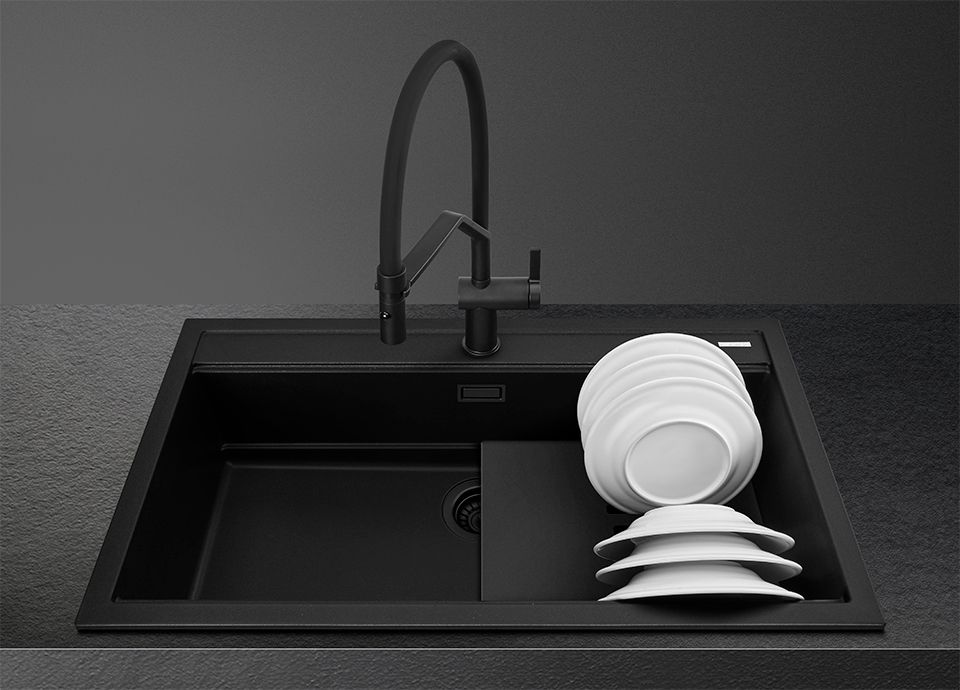

Kitchen sink VSGX860MN Smeg

Kitchen sink Standard built-in Universale Aesthetic VSGX860MN

Product Family
Sink
Aesthetics
Universale
Type
Composite bowl
Building in type
Standard
No. of bowls
1
Color
Black
Sink material
Composite
  • Features
  • Accessories
  • Download

Type

Product Family: Sink
Type: Composite bowl
Sink material: Composite
Sink dimensions: 86 cm
No. of bowls: 1
EAN code: 8017709311735

Aesthetics

Standard installation: Traditional installation in tabletop, suitable for any kitchen sets
Aesthetics: Universale
Serie: Quadra
Color: Black
Tap hole / precut tap hole: Prepared
Building in type: Standard

Technical Features

Antibacterial Antiscratch Termal schock resistant High temperatures resistant Impact resistant Easy to clean UV protection, does not fade over time. Cupboard width required for sink installation
Width (mm): 860 mm
Frame depth (mm): 5
Height from kitchen top: 10 mm
Cutout dimension topmount (mm): 840 x 480 mm
Tap hole: 1
Tap hole diameter: 35 mm
No. of clips: 8
Type of clips: Standard
Characteristics of composite material: Antibacterial, Anti-scratch , Termal schock resistant, High temperatures resistant, Impact resistant, Easy to clean, UV Resistant
Base unit size: 90 cm

RH Bowl

Sink depth - depending on the model, the depth can be from13 to 24,5
Bowl type RH: Minimum radius
Bowl dimensions, WxDxH (mm): 796 x 386 x 215 mm
Bowl depth (mm): 215 mm
Radius corner right bowl (mm): 6 mm
Overflow: Yes, flush fitted
Strainer position: Wall position
Strainer dimension: 3.5"

Logistic Information

Dimensions of the product (mm): 215x860x510 mm
Net weight (kg): 14.500 kg
Gross weight (kg): 19.350 kg

Accessories Included

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips
Black matt standard waste kit and rectangular overflow: Yes
Colander: Yes
Black HPL chopping board: Yes

Technical drawing

Instruction manual

Technical sheet

Brochure

3D file
