Cooker with Gas Hob 100x60 cm Classica Aesthetic

Spacious and versatile cooker perfect for preparing several dishes at once, equipped with electric ovens and a gas hob: efficient and responsive, the visible heat source allows total control and the choice of the right intensity.
  • The best cooking performances guaranteed by ventilated circular flow - True-convection
  • Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
  • Easy oven cleaning through the use of catalytic panels in the cavity - Catalysis
  • Easy and intuitive timer setting with a single touch
  • The oven has a fan equipped with a circular heating element allowing cooking with rotating heat
  • The best cooking performance at the highest energy efficiency
  • New cooling system with tangential fan and airflow from the door to the splashback
  • Highlights
  • Features
  • Accessories
  • Download

Increased reliability

The innovative tangential cooling system uses a fan to direct the airflow from the door to the back of the cavity, ensuring optimal and uniform recirculation.
Airfry
Thanks to the air fry function, lighter and tastier meals can be achieved. The air fry basket ensures crispy textures and delicious flavours making healthy food delicious and appetizing.
Barbecue
Enjoy the sizzle and flavor of BBQ cooking right at home, making every meal a delightful grilling experience thanks to the double-sided grill.
Pizza stone
Using the specific refractory stone, it is possible to bake soft and crispy pizzas and delicious leavened products, ensuring perfect textures and flavours every time.

Type

Installation in column: Installation in column
Product Family: Cooker
Cooker size: 100x60 cm
Cooker configuration: Dual fuel
Hob type: Gas
Hob energy type: Gas
N. of ovens: 2
Type of main oven: Thermo-ventilated
Type of second oven: Static
EAN code: 8017709256746
Installation positioning of the appliance: Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Cleaning system: Catalytic

Aesthetics

Heavy duty cast iron pan stands: for maximum stability and strength. Knobs control 4.3 inch display with LED technology, usability with knobs + 3 touch keys Fingerprint proof stainless steel: Fingerprint proof stainless steel keeps stainless steel looking as good as new.
Colour: Stainless steel
Design: Professional
Finishing: Satin
Aesthetic: Classica
Command panel finish: Finger friendly stainless steel
Series: Opera
Material: Stainless steel
Upstand: Yes
Hob colour: Stainless steel
Type of pan stands: Cast Iron
Type of control setting hob: Control knobs
Type of control knobs: Smeg Classic
Controls colour: Stainless steel
No. of controls: 10
Display name: DigiScreen
Door: With 2 horizontal strips
Glass type: Eclipse
Handle: Smeg Classic
Handle Colour: Brushed stainless steel
Storage compartment: Drawer

Programme / Functions

Traditional cooking functions
  • Static: Traditional cooking suitable for the preparation of one dish at a time.
The fan is not active and the heat comes from below and from above at the same time.
Static cooking is slower and more delicate, ideal in order to get well cooked and dry dishes even inside.
Ideal for cooking all types of roasts, fatty meats, bread, filled cakes. Static
  • Fan assisted: Intense and homogeneous traditional cooking, also suitable for complex recipes.
The fan is active and the heat comes from below and from above at the same time.
Ventilated cooking ensures a faster and more homogeneous result, leaving fragrant foods outside and moister inside.
Ideal for baked pasta, biscuits, roasts and cobblers. Fan assisted
  • Circulaire: it is the perfect function for cooking all types of dishes in a more delicate way.
The heat comes from the back of the oven and is distributed quickly and evenly
The fan is active. It is also ideal for cooking on multiple levels without mixing smells and flavors. Circulaire
  • ECO: low energy consumption cooking: this function is particularly suitable for cooking on a single shelf with low energy consumption.
It is recommended for all types of food except those that can generate a lot of moisture (for example vegetables).
To achieve maximum energy savings and reduce time, it is recommended to put the food in the oven without preheating the cooking compartment Eco
  • Half grill: For rapid cooking and browning of foods. Best results can be obtained by using the top shelf for small items, the lower shelves for larger ones, such as chops or sausages. For half grill heat is generated only at the centre of the element, so is ideal for smaller quantities. Small grill
  • Grill: Very intense heat coming only from above from a double heating element.
The fan is not active. Provides excellent grilling and gratinating results.
Used at the end of cooking, it gives a uniform browning to dishes. Large grill
  • Fan with grill element: The fan reduces the fierce heat from the grill, providing an excellent method of grilling various foods, chops, steaks, sausages etc. giving even browning and heat distribution, without drying out the food. The top two levels recommended for use, and the lower part of the oven can be used to keep items warm at the same time, an excellent facility when cooking a grilled breakfast. Half grill (centre portion only) is ideal for small quantities of food. Fan grill (small)
  • Fan assisted base: the mix of fan and lower heating element alone allows  to finish cooking foods already cooked on the surface but not internally more quickly.
This system is recommended to finish cooking foods that are already well cooked on the surface, but not internally, which therefore require a moderate higher heat.
Ideal for any type of food. Fan assisted base
Cleaning functions
  • Catalytic
  • Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity. Vapor clean

Options Main Oven

Timer: Yes
End of cooking acoustic alarm: Yes
Minimum Temperature: 50 °C
Maximum temperature: 250 °C

Programs / Functions Auxiliary Oven

Cooking functions cavity 2: 4
Traditional cooking functions, cavity 2
  • Static: Traditional cooking suitable for the preparation of one dish at a time.
The fan is not active and the heat comes from below and from above at the same time.
Static cooking is slower and more delicate, ideal in order to get well cooked and dry dishes even inside.
Ideal for cooking all types of roasts, fatty meats, bread, filled cakes. Static
  • Half grill: For rapid cooking and browning of foods. Best results can be obtained by using the top shelf for small items, the lower shelves for larger ones, such as chops or sausages. For half grill heat is generated only at the centre of the element, so is ideal for smaller quantities. Small grill
  • Grill: Very intense heat coming only from above from a double heating element.
The fan is not active. Provides excellent grilling and gratinating results.
Used at the end of cooking, it gives a uniform browning to dishes. Large grill
  • Base: the heat comes only from the bottom of the cavity.
The fan is not active. Ideal for sweet and savory pies, cobblers and pizzas.
Designed to complete cooking and make food more crunchy
This symbol in gas ovens indicates the gas burner. Bottom

Options Auxiliary Oven

Minimum Temperature: 50 °C
Maximum temperature: 250 °C

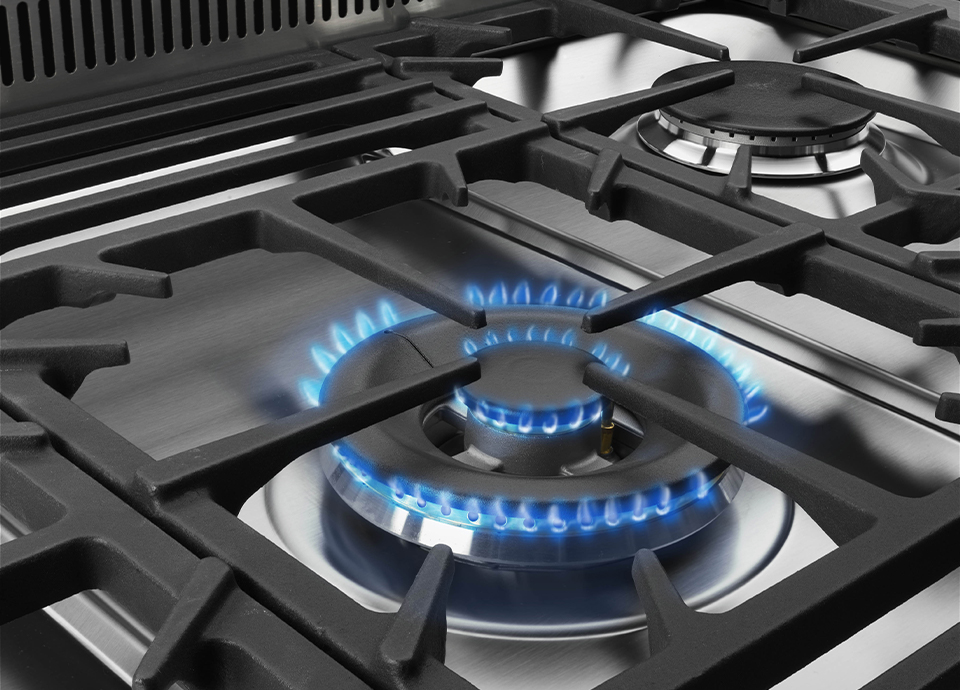

Hob technical features

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power. Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
Total no. of cook zones: 6
1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Front centre
4th zone position: Rear centre
5th zone position: Front right
6th zone position: Rear right
1st zone type: Gas - Semi Rapid
2nd zone type: Gas - 2UR (dual)
3rd zone type: Gas - AUX
4th zone type: Gas - Semi Rapid
5th zone type: Gas - 2UR (dual)
6th zone type: Gas - Rapid
1st zone power: 1.80 kW
2nd zone power: 4.20 kW
3rd zone power: 1.00 kW
4th zone power: 1.80 kW
5th zone power: 4.20 kW
6th zone power: 3.00 kW
Type of gas burners: Standard
Burner caps: Matt black enamelled
Automatic electronic ignition: Yes
Gas safety valves: Yes

Main Oven Technical Features

Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time.
It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity.
It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength
Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking The oven cavity has 4 different cooking levels. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity: 61 l
Gross volume, 1st cavity: 70 l
Cavity material: Ever Clean enamel
No. of shelves: 4
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light Power: 40 W
Fan number: 1
Cooking time setting: Start and Stop
Door opening: Flap down
Light when oven door is open: Yes
Removable door: Yes
Total no. of door glasses: 3
No.of thermo-reflective door glasses: 2
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Tilting grill: Yes
Grill elememt: 1700 W
Large grill - Power: 2700 W
Lower heating element power: 1200 W
Upper heating element - Power: 1000 W
Circular heating element - Power: 2000 W
Temperature control: Electro-mechanical

Second Oven Technical Features

Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time.
It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity.
It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength
Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking The oven cavity has 4 different cooking levels. Air cooling system: to ensure a safe surface temperatures. The capacity indicates the amount of usable space in the oven cavity in litres. Triple glazed doors: Number of glazed doors. Removable roof liner: This is a perfect solution that protects the upper part of the cavity of the oven from pollution. Easy to remove for cleaning, it can be washed in the dishwasher. Electronic control: Allows you to maintain temperature inside the oven with the precision 2-3 ° C. This enables to cook meals that are very sensitive to temperature changes, such as cakes, souffles, puddings.
Net volume of the second cavity: 35 l
Cavity material: Ever Clean enamel
No. of shelves: 4
Type of shelves: Metal racks
Roof Liner: Yes
No. of lights: 1
Light type: Incandescent
Light Power: 25 W
Light when oven door is open: Yes
Door opening: Flap down
Removable door: Yes
No. total door glasses: 3
No. thermo-reflective door glasses: 2
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Grill element - power: 1300 W
Large grill - Power: 2050 W
Lower heating element - power: 700 W
Upper heating element - Power: 600 W
Temperature control: Electro-mechanical

Performance / Energy Label

???Class_Arrows_A+++D_A???
Energy efficiency class: A
Energy consumption in forced air convection: 2.77 MJ
Energy consumption per cycle in fan-forced convection: 0.77 KWh
Energy consumption in conventional mode: 3.42 MJ
Energy consumption per cycle in conventional mode: 0.95 KWh

Performance /Energy Label - Second Cavity

B: Product energy rating, measured from A+++ to D / G depending on the product family.
Energy efficiency class, second cavity: B
Energy consumption in conventional mode, 2 cavity: 2.84 MJ
Energy consumption per cycle in conventional mode, cavity 2: 0.79 KWh

Electrical Connection

Plug: Not present
Electrical connection rating: 5300 W
Current: 23 A
Voltage: 220-240 V
Frequency: 50/60 Hz
Additional connection modalities: Double and Three Phase
Power supply cable length: 200 cm
Electric cable: Installed, Single phase

Gas Connection

Gas connection rating (W): 15600 W
Gas Type: G20 Natural gas

Logistic Information

Dimensions of the product HxWxD (mm): 900x1000x600 mm
Width (mm): 1000 mm
Product Height (mm): 900 mm
Depth (mm): 600 mm
Dimensions of the packed product (mm): 1060X1080X735 mm
Gross weight (kg): 134.300 kg
Net weight (kg): 112.300 kg
Packed width: 1080 mm
Packaged depth: 735 mm
Height (mm) packed: 1060 mm
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 4.676 kg
Packaging composition - polystyrene (kg): 1.155 kg
Packaging composition - wood (kg): 15.960 kg
Packaging composition - plastic (kg): 0.227 kg
